Rear Servo Pin Spec (Visual ID)

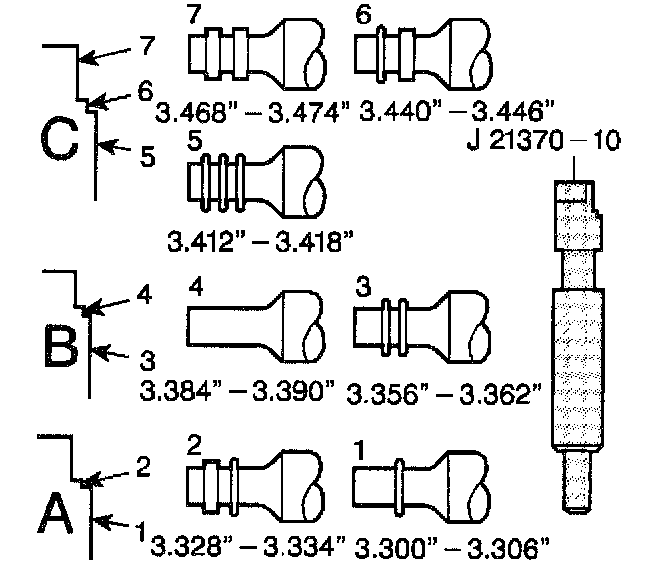

Rear Servo Pin Specification
Refer to the rear servo pin selection chart above in order to determine the correct pin usage.
