Power Window Switch: Diagrams

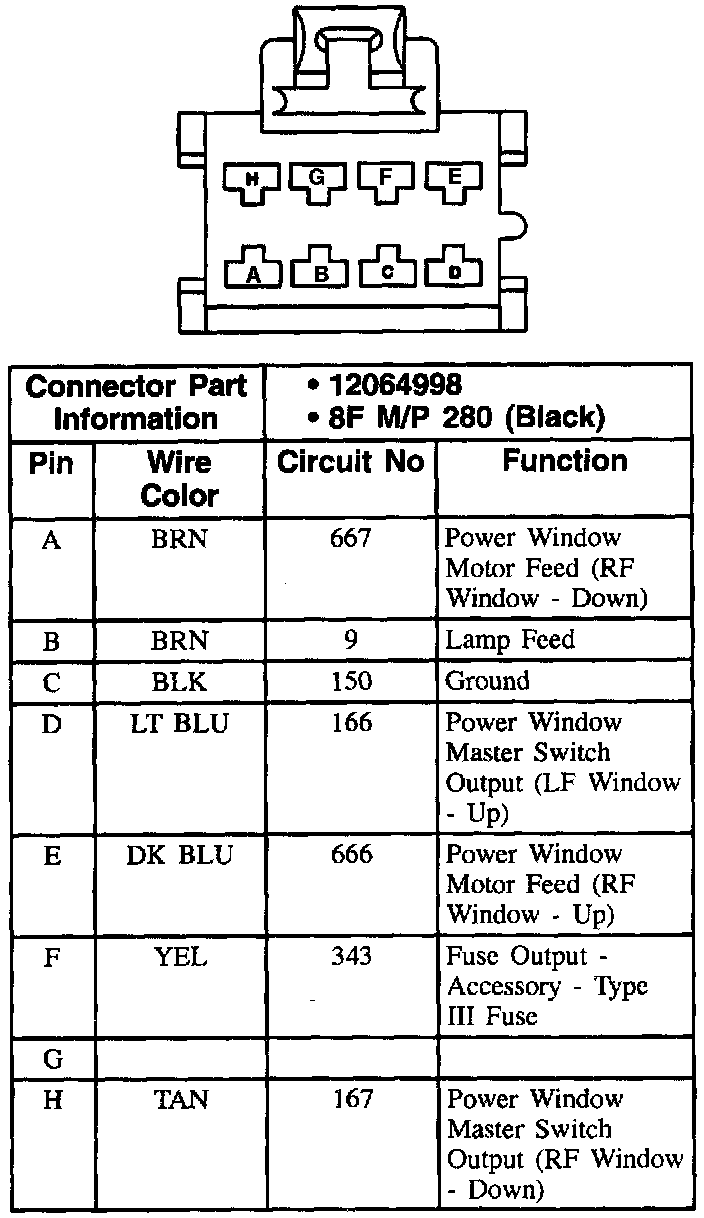

Power Side Window Switch, LF Door Connector:

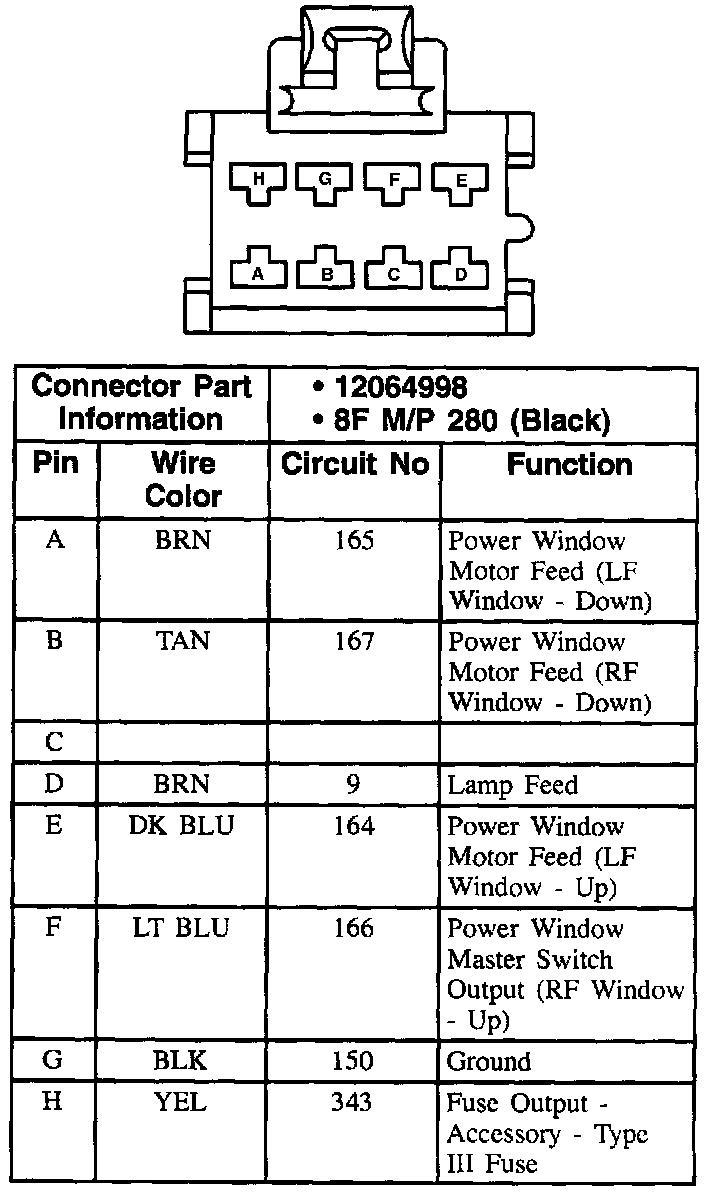

Power Side Window Switch, RF Door Connector:
