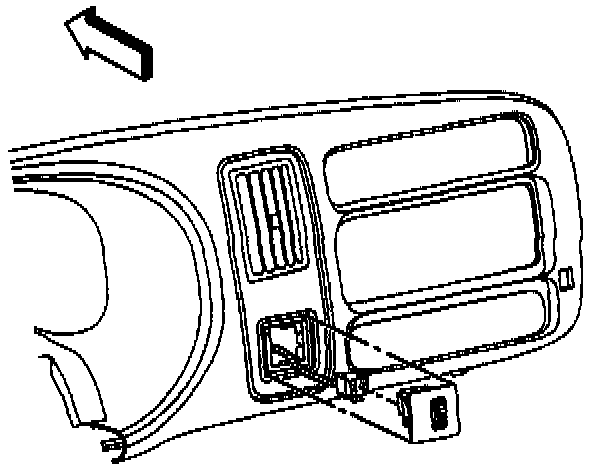

Auxiliary Heater Blower Switch:

Remove or Disconnect

1. The instrument cluster trim plate.
2. The electrical connector from switch.
3. The switch from bezel by releasing tabs on sides of switch.

Install or Connect

1. The switch to bezel by snapping into place.
2. The electrical connector to switch.
3. The instrument cluster trim plate.
