4L80-E Automatic Transmission
>>

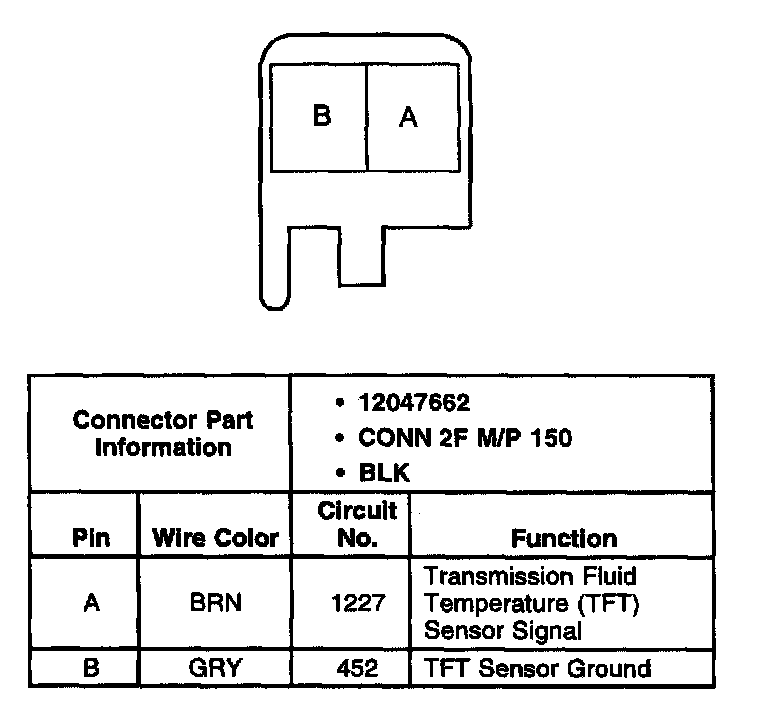

Trans. Fluid Temp. (TFT) Sensor Connector, Wire Harness Side
Trans. Fluid Temp. (TFT) Sensor Connector, Wire Harness Side
