Park/Turn Signal Lamp Replacement (Base Vehicles)

REMOVAL PROCEDURE

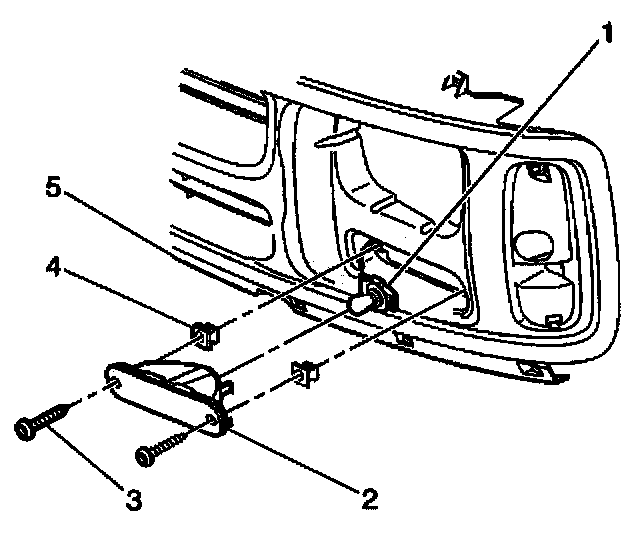

1. Remove the screws (3) that retain the park/turn signal lamp to the radiator grille.
2. Remove the park/turn signal lamp (2) from the radiator grille.
3. Disconnect the bulb socket (1) from the park/turn signal lamp.
4. Remove the bulb (1) from the socket.

INSTALLATION PROCEDURE


1. Connect the bulb (1) into the socket.
2. Connect the bulb socket (1) into the park/turn signal lamp.
3. Install the park/turn signal lamp (2) to the radiator grille (5).
4. Install the park/turn signal lamp retaining screws (3) to the radiator grille.
