Turn Signal Lamp: Diagrams

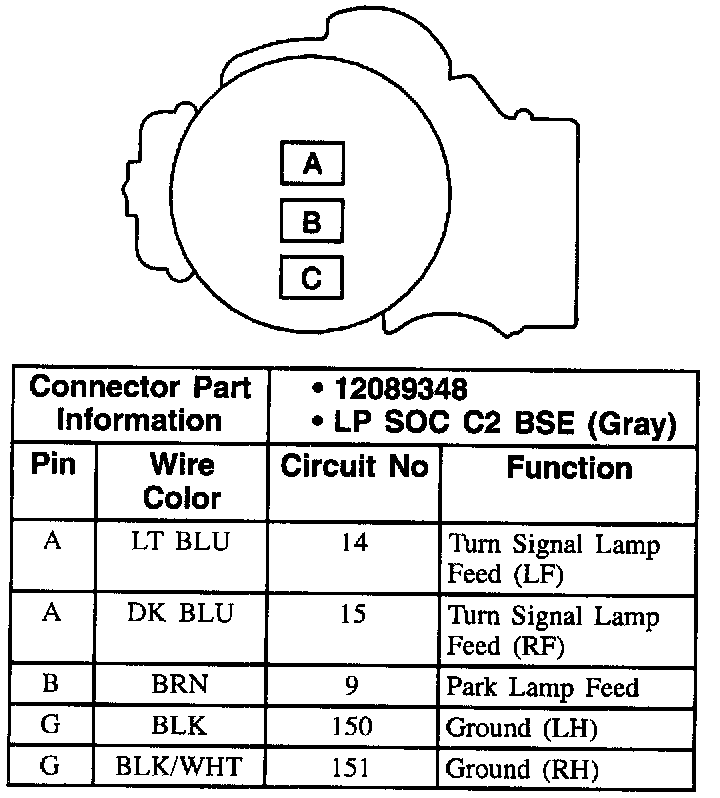

Park And Turn Signal Lamp LH/RH Inner/Outer Connector (Composite):

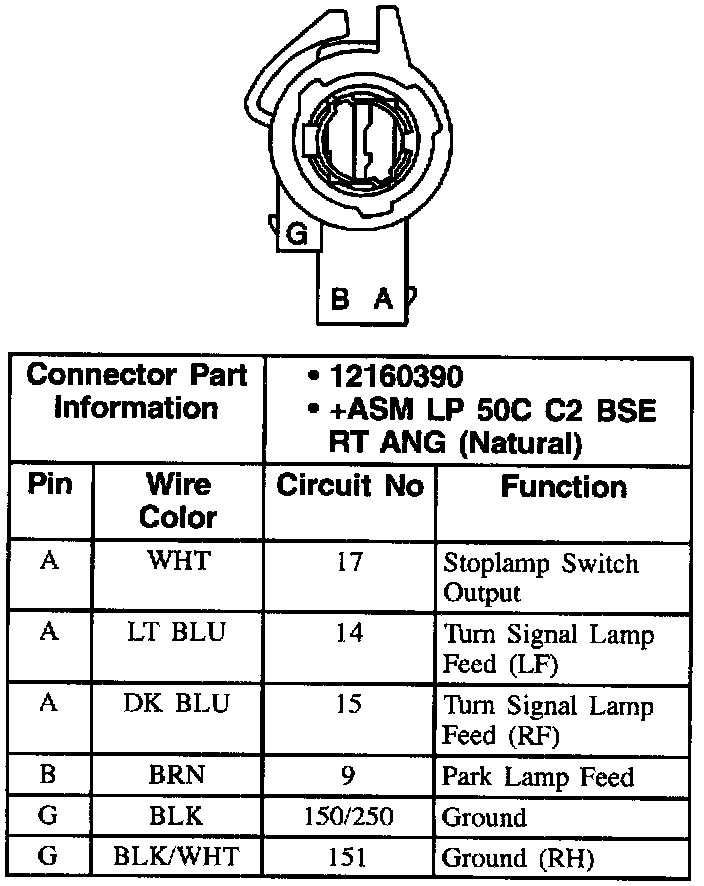

Taillamp (Park And Stop), Park And Turn Signal Lamp, LF/RF, RR Connectors:
