Passenger Van Rear AUX TEMP Valve Assembly Only Inoperative
Passenger Van Rear AUX TEMP Valve Assembly Only Inoperative

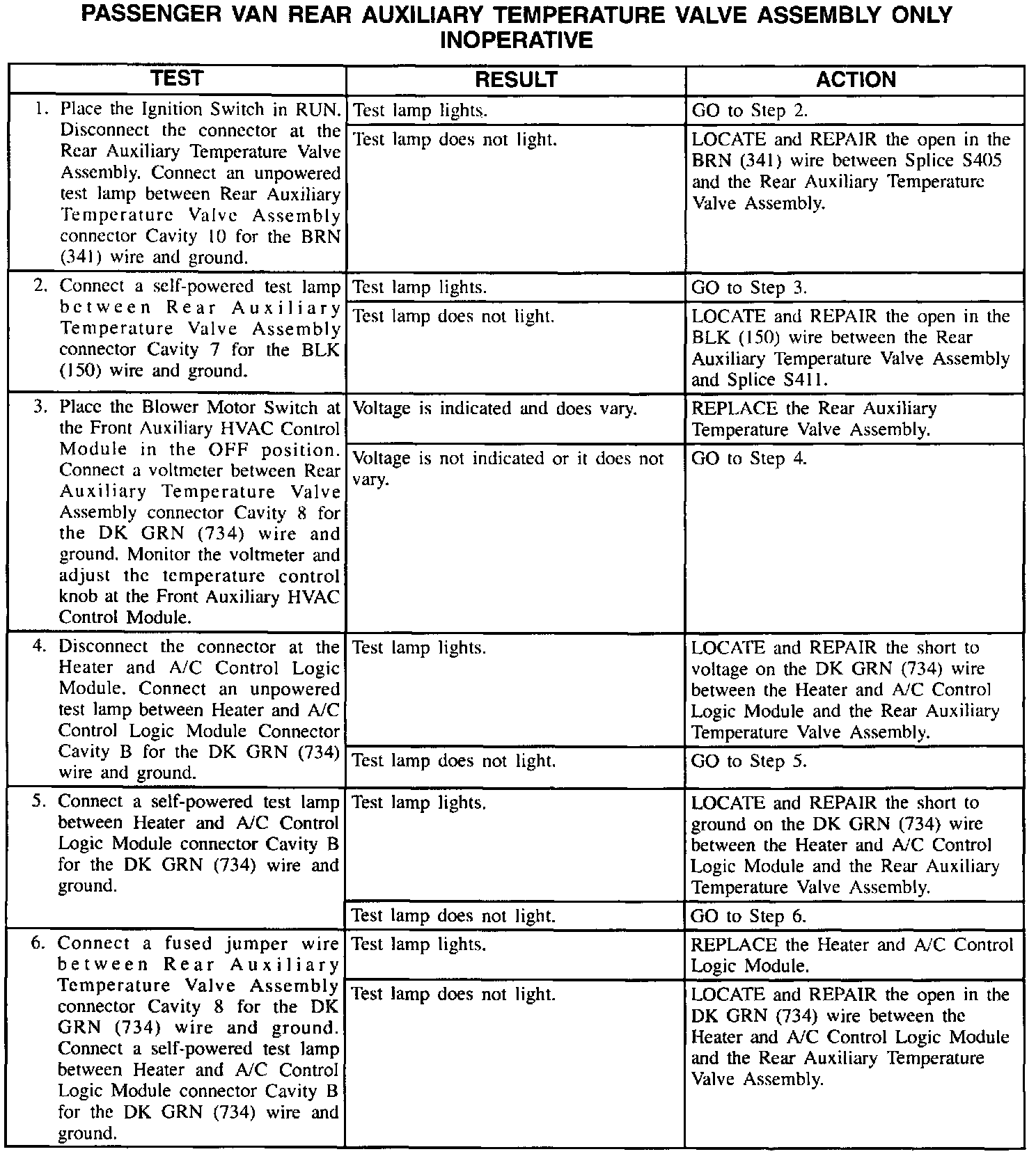

Passenger Van Rear Auxiliary Temperature Valve Assembly Only Inoperative:
