Passenger Van Rear AUX TEMP & Mode Valves Both Inoperative
Passenger Van Rear AUX TEMP & Mode Valves Both Inoperative

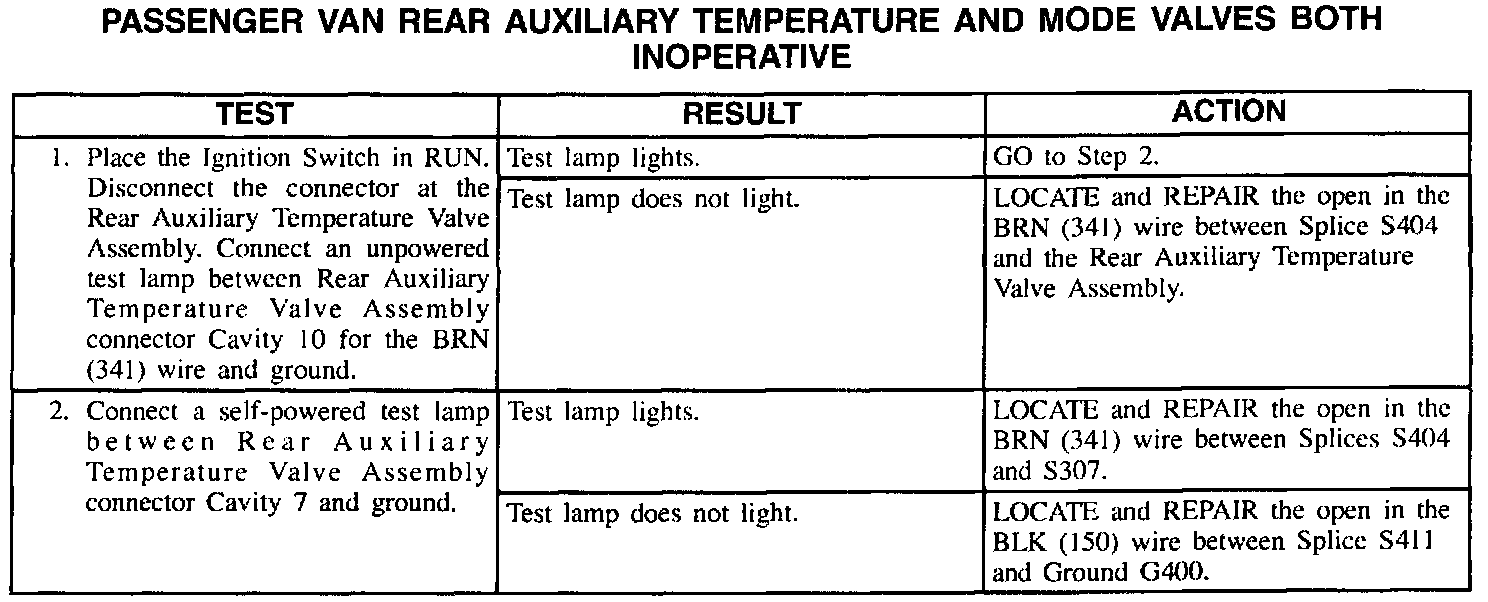

Passenger Van Rear Auxiliary Temperature And Mode Valves Both Inoperative:
