Cargo Van Rear Auxiliary TEMP & Mode Valves Are Inoperative
Cargo Van Rear Auxiliary TEMP & Mode Valves Are Inoperative

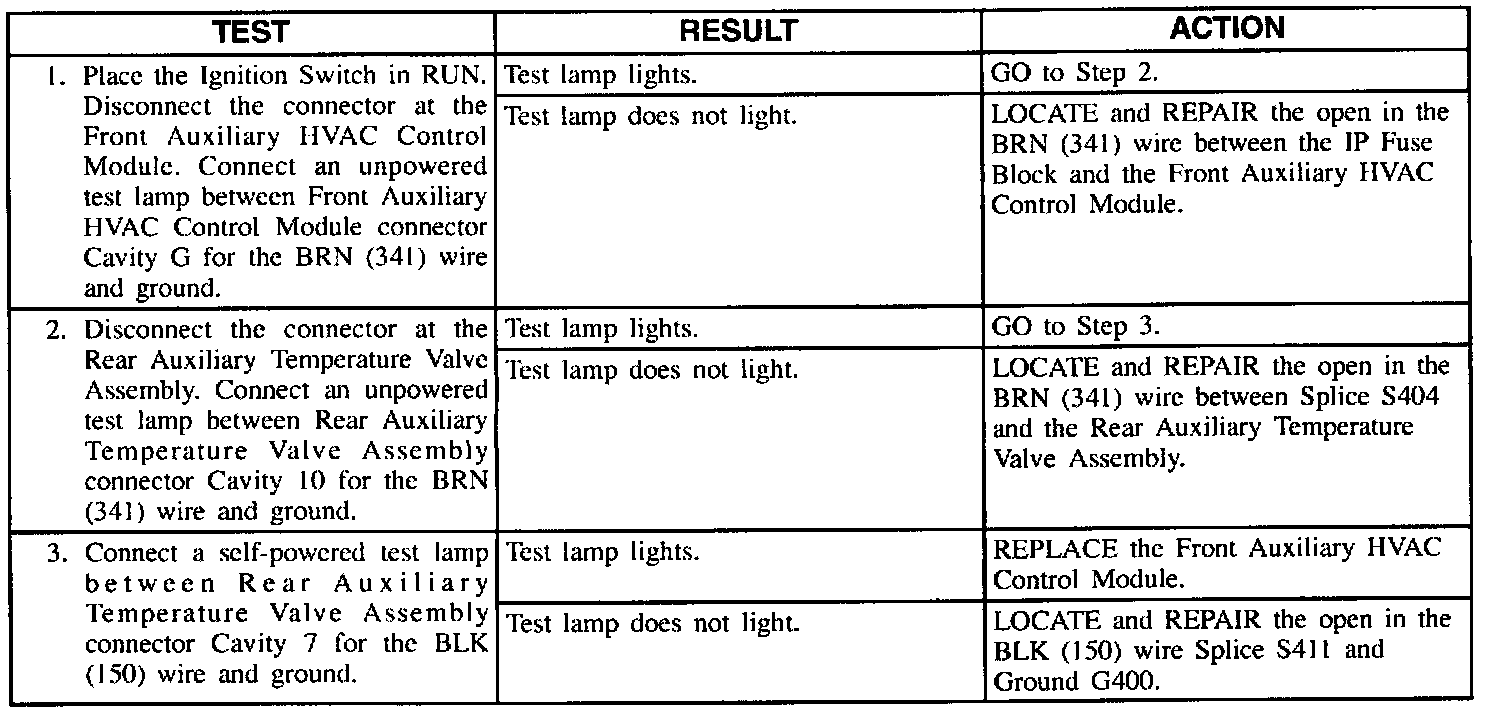

Cargo Van Rear Auxiliary Temperature And Mode Valves Are Inoperative:
