Home
>>
Chevy Truck
>>
1998
>>
Express 1 Ton Van V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
Air Delivery and Temperature Control
>>
Rear Ventilation Controls
>>
Passenger Van With Rear Auxiliary Heating and Air Conditioning

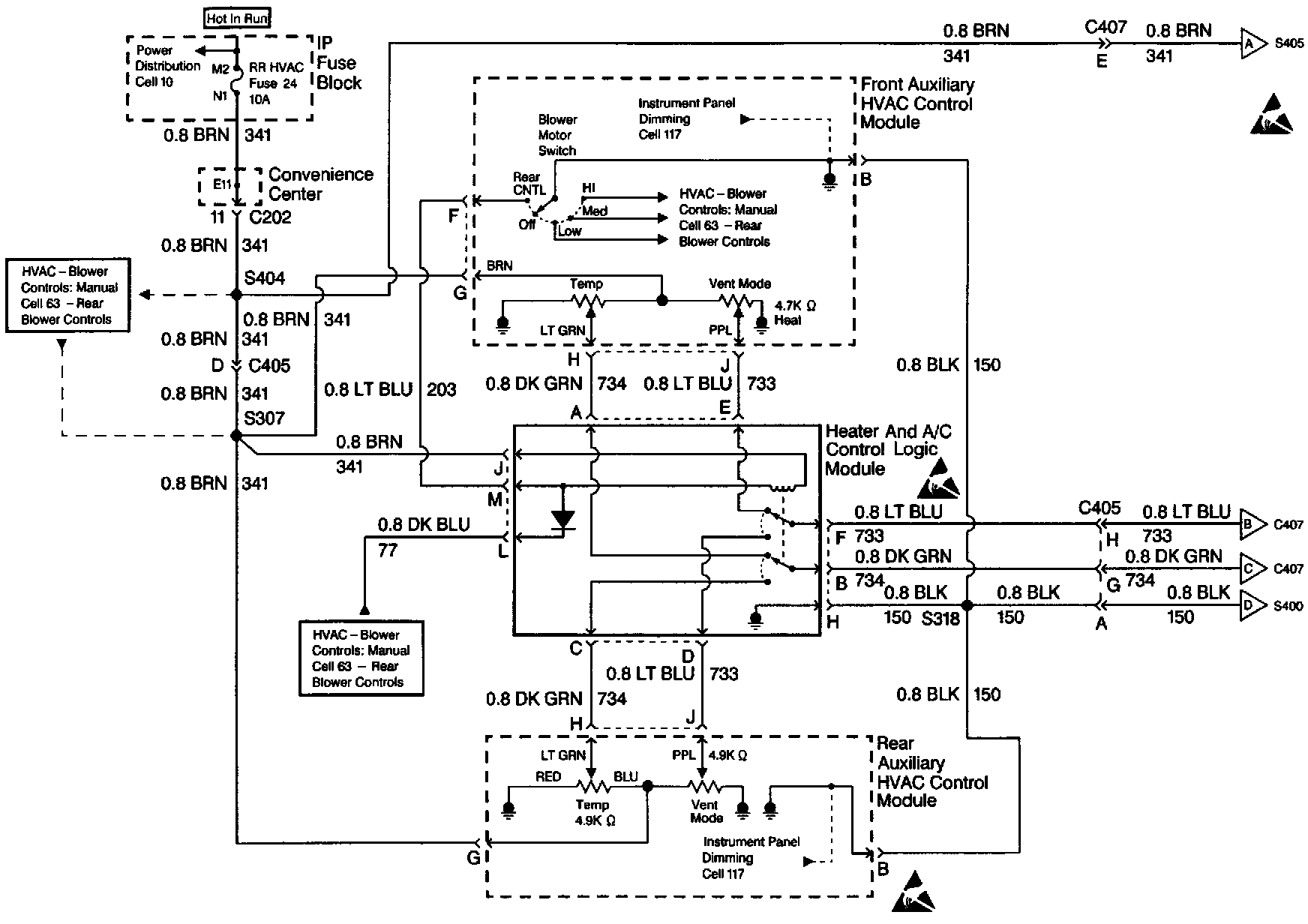

Passenger Van With Rear Auxiliary Heating and Air Conditioning
HVAC Air Delivery And Temperature Control: Manual Rear Ventilation Controls: Passenger Van With Rear Auxiliary Heating And Air Conditioning:
