Valve Rocker Arm Cover Replacement - Left

REMOVAL PROCEDURE





1. Remove the engine cover.
2. Disconnect the spark plug wires from the left side of the distributor cap.
3. Remove the PCV valve from the valve cover and set it aside.
4. Disconnect the coolant sender electrical connector.
5. In order to gain access, remove the A/C compressor, if equipped.

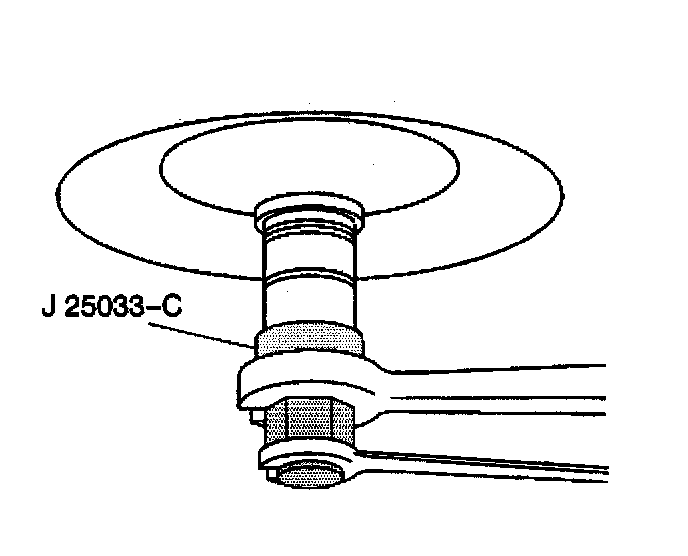

6. Remove the power steering pulley from the power steering pump.

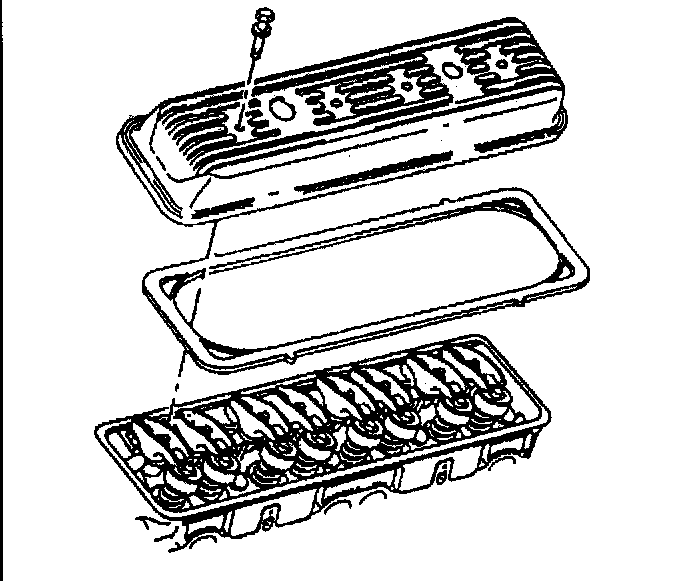

7. Remove the left valve cover from the engine.
8. Clean all sealing surfaces.

INSTALLATION PROCEDURE





1. Install the left valve cover to the engine. Refer to Valve Rocker Arm Cover Installation under Engine Unit Repair.





2. Install the power steering pump pulley to the power steering pump.
3. Connect the electrical connector to the power steering pump.
4. Install the A/C compressor, if equipped.
5. Connect the coolant sender electrical connector.
6. Install the PCV valve to the valve cover.
7. Connect the spark plug wires to the left side of the distributor cap.
8. Install the engine cover.
