Crankshaft: Service and Repair

REMOVAL PROCEDURE





1. Remove the engine front cover.

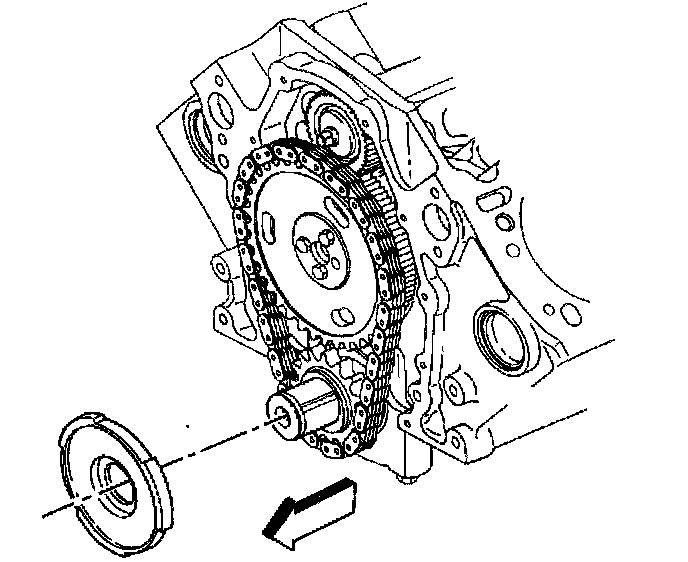

2. Remove the crankshaft position sensor reluctor ring.

INSTALLATION PROCEDURE





1. Install the crankshaft position sensor reluctor ring.

NOTICE: Failure to properly align the crankshaft position sensor reluctor ring may result in component damage and effect OBD II system performance.

IMPORTANT: The reluctor ring is shaped like a dish. The dish must face the engine front cover. Failure to do so will damage the timing chain and the reluctor ring.

2. Install the engine front cover.
