Home >> Chevy Truck >> 1998 >> Express 1 Ton Van V8-5.7L VIN R >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> Blower Controls (Manual) >> Rear Auxiliary Blower Controls >> Passenger Van

Passenger Van

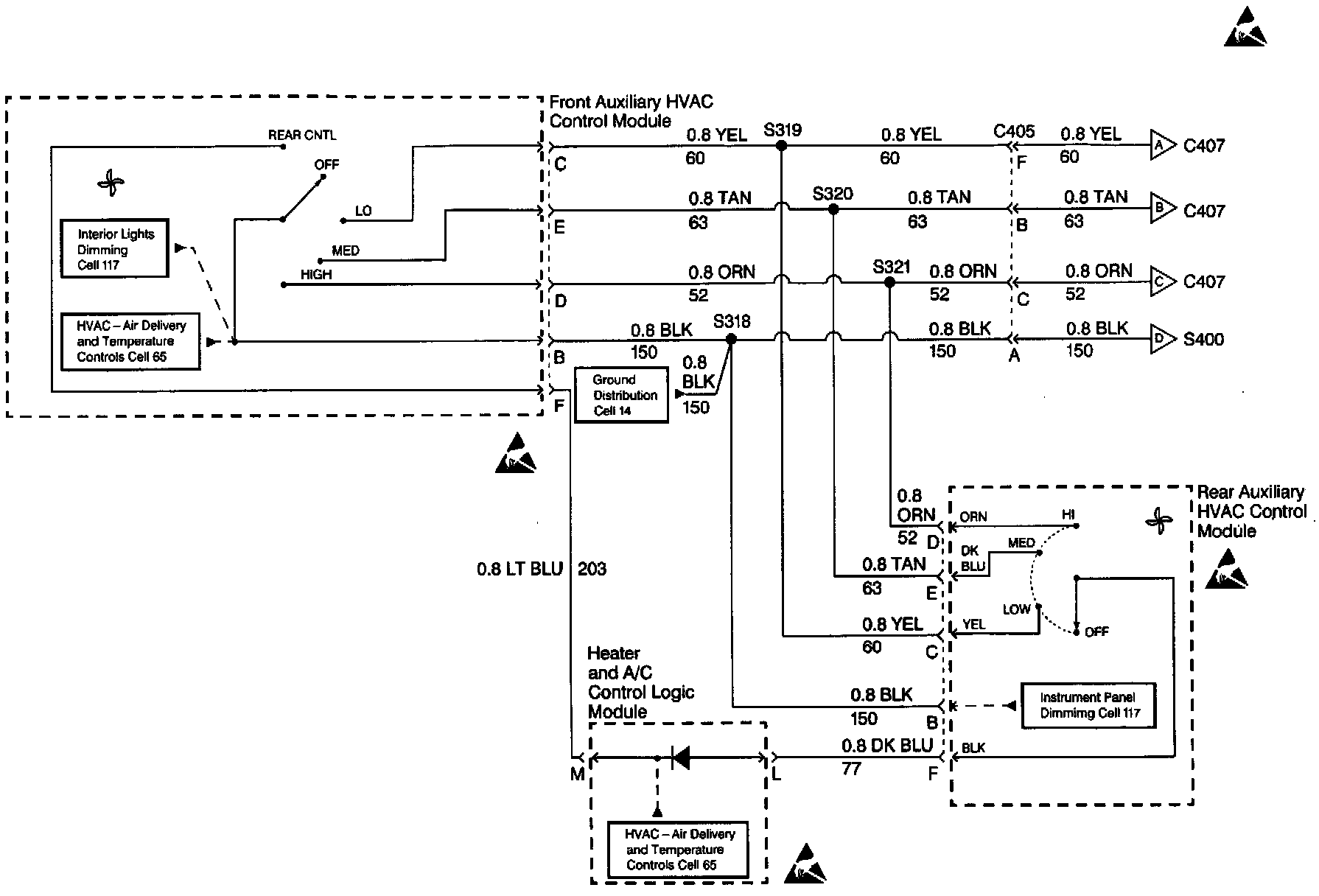

HVAC-Blower Controls: Manual Rear Auxiliary Blower Controls: Passenger Van:
