Torque Converter Clutch Pulse Width Modulation Solenoid

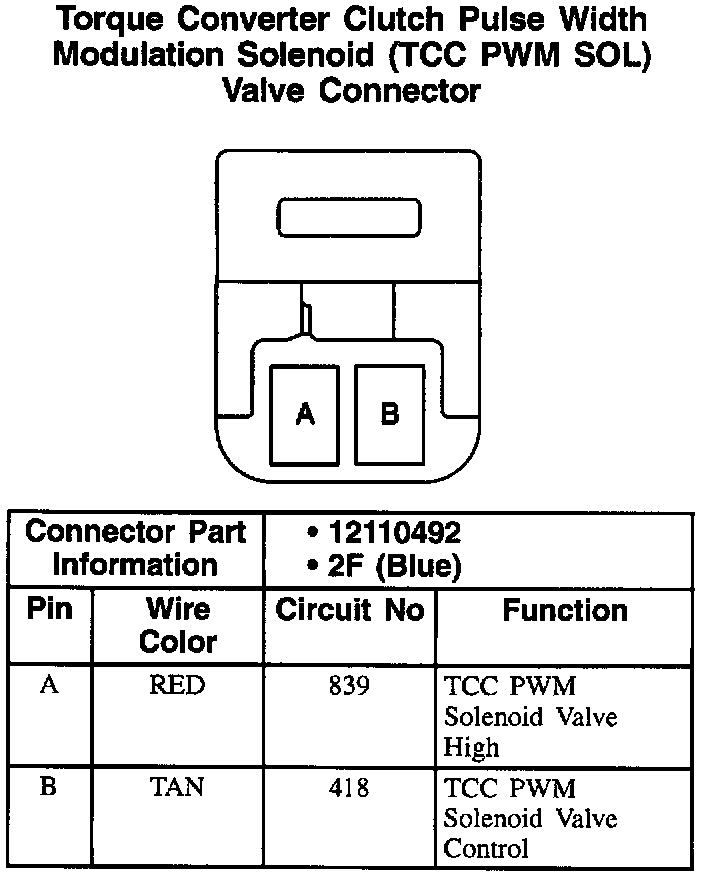

Torque Converter Clutch Pulse Width Modulation Solenoid (TCC PWM SOL) Valve Connector:
