Home >> Chevy Truck >> 1998 >> Express 1 Ton Van V8-5.7L VIN R >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module >> Electronic Diagnostics >> C3

C3

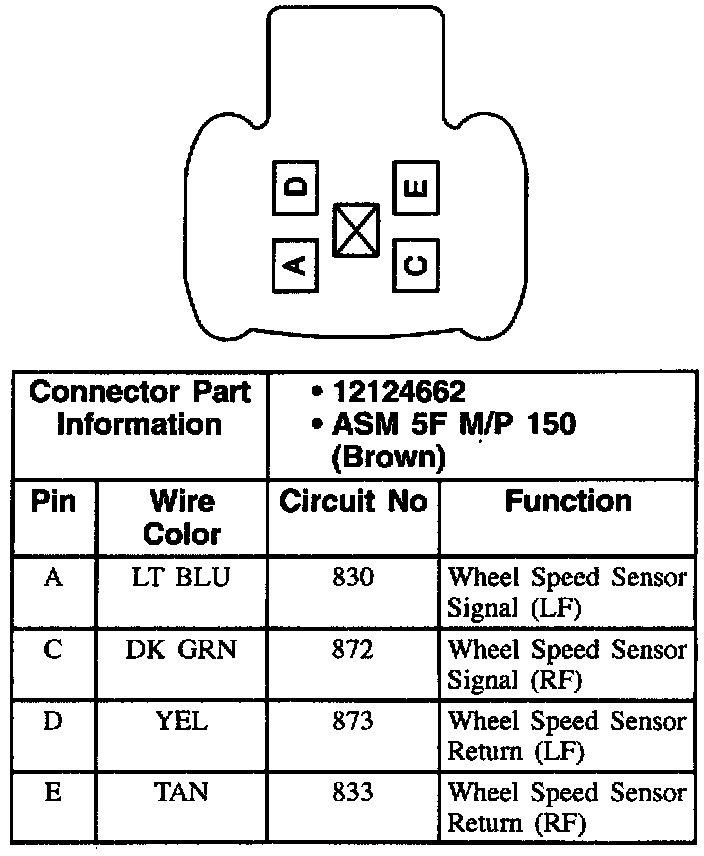

Electronic Brake Control Module C3 Connector:
