Home >> Chevy Truck >> 1998 >> Express 1 Ton Van V8-5.7L VIN R >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Diagrams >> Electrical Diagrams >> Base Power Locks

Base Power Locks

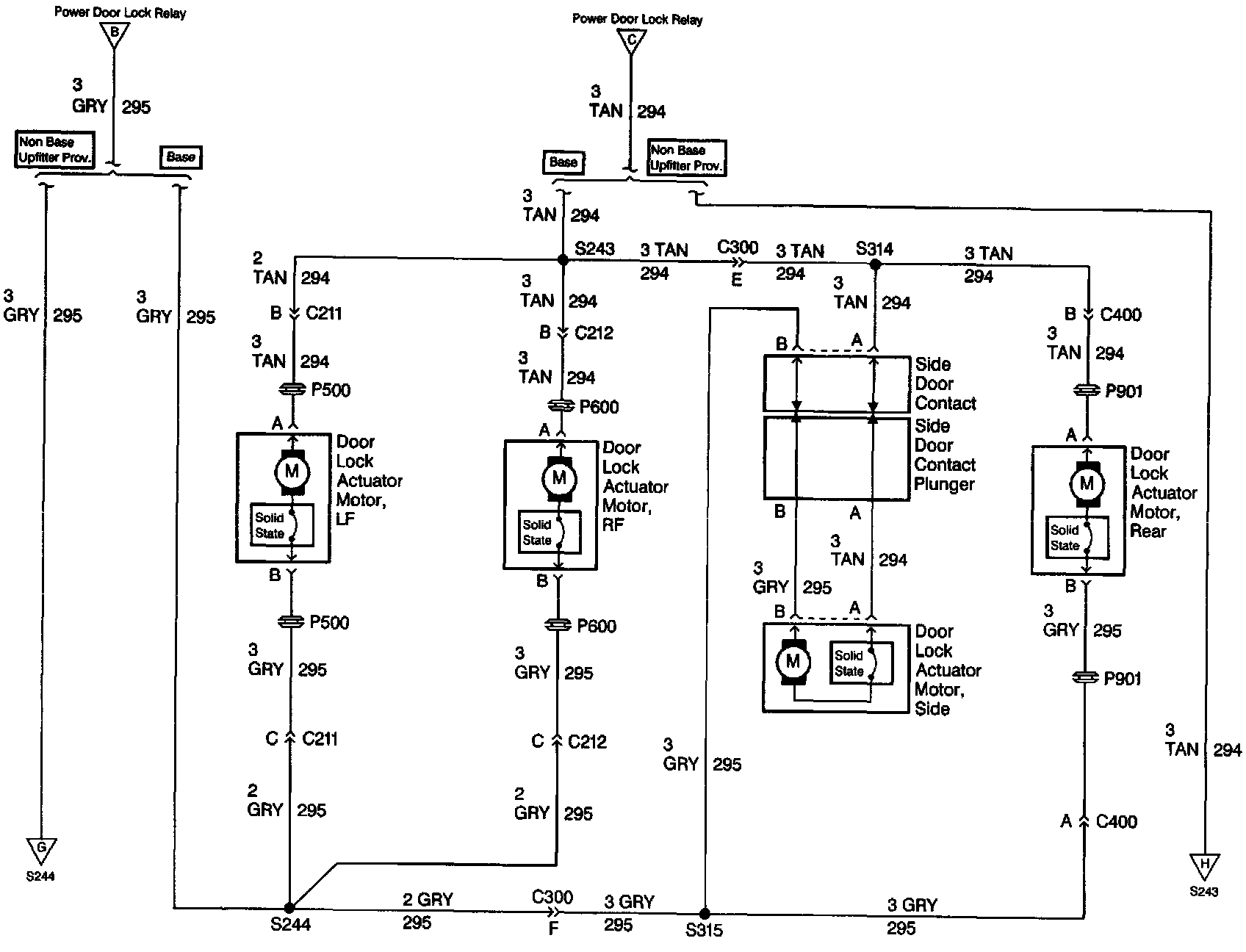

Power Door Locks: Base:
