Home >> Chevy Truck >> 1998 >> Express 1 Ton Van V8-5.7L VIN R >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Keyless Entry >> Diagrams >> Electrical Diagrams >> General

General

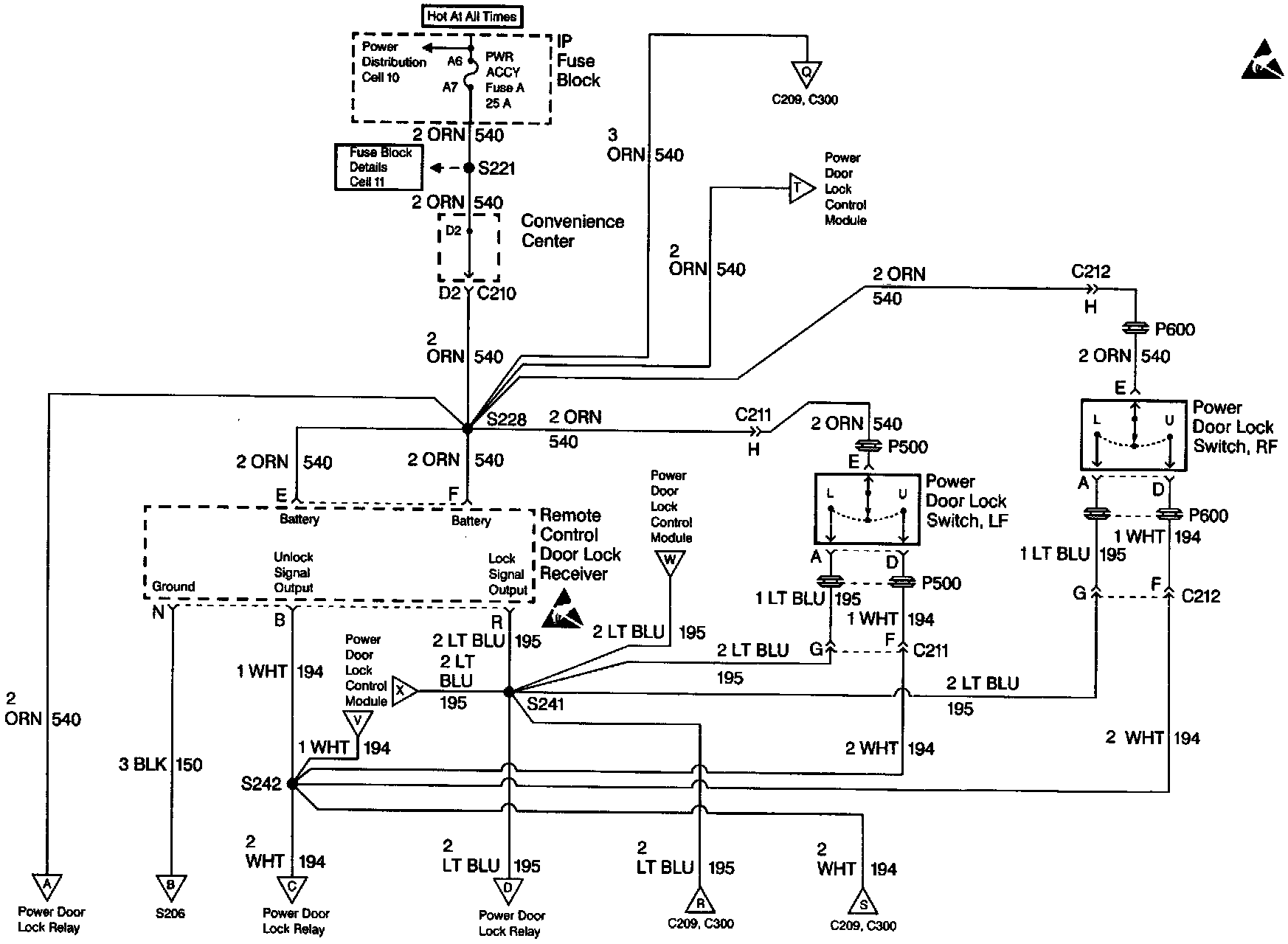

Keyless Entry (Part 1 Of 3):

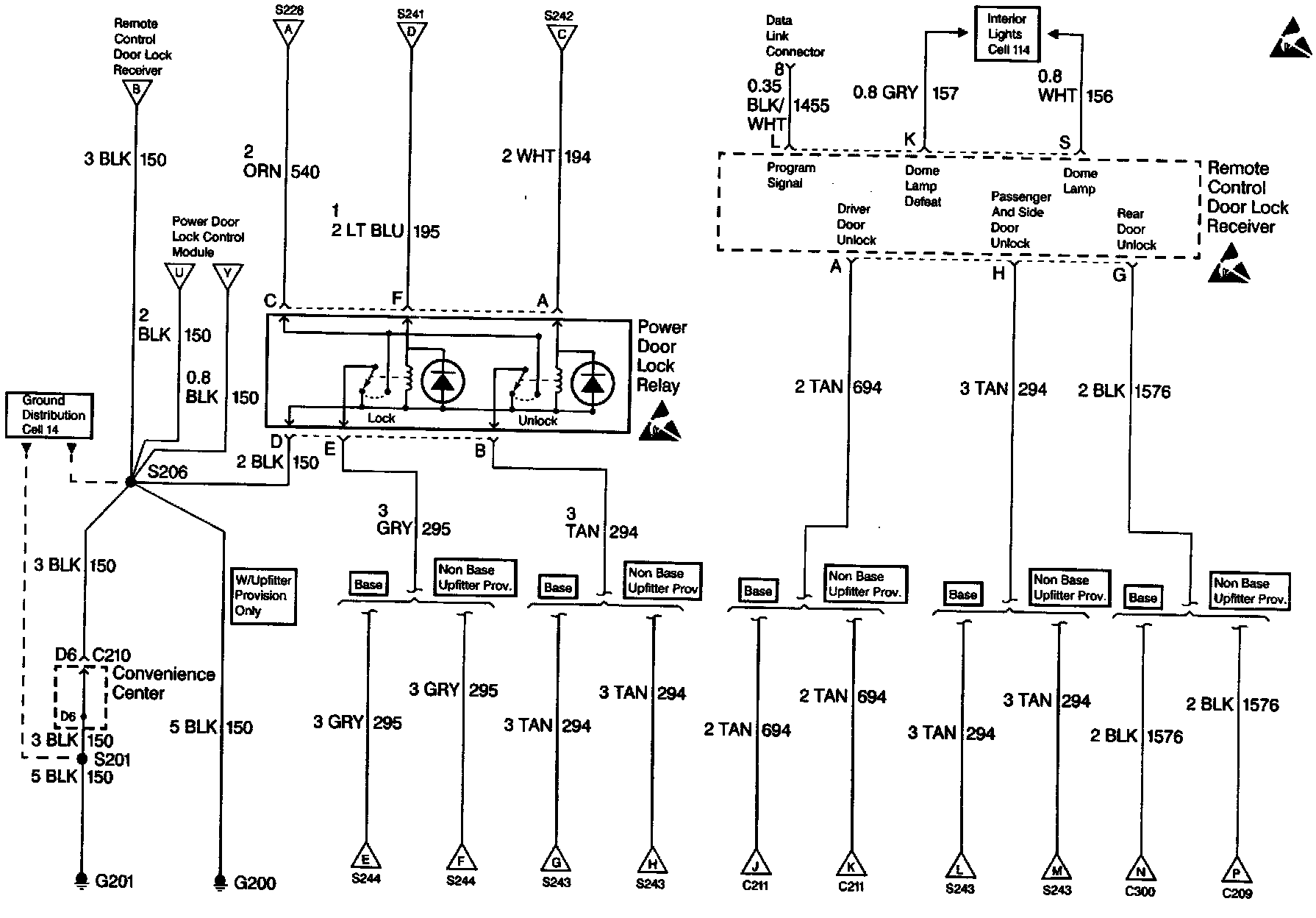

Keyless Entry (Part 2 Of 3):



Keyless Entry (Part 3 Of 3):
