Heating System

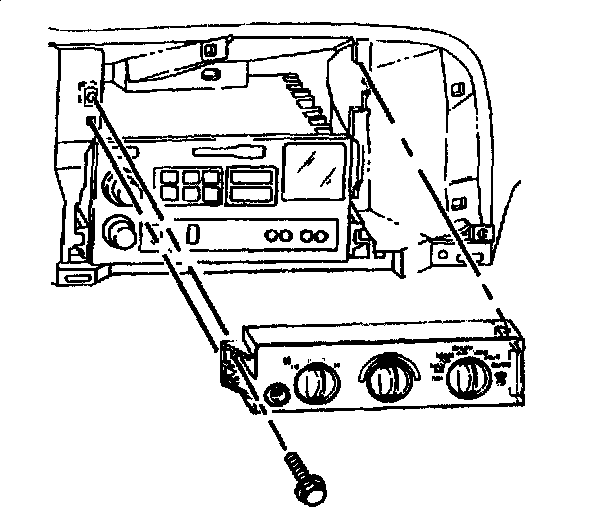

Control Assembly Electrical And Vacuum Connectors:

Remove or Disconnect

1. Instrument cluster trim plate.
2. Control assembly from the instrument panel.
^ One retaining screw from left edge of control assembly.
^ Pivot control assembly from the instrument panel.
^ Pull control assembly Out of the instrument panel far enough to reach the vacuum and electrical connectors.
3. Electrical connectors.
4. Vacuum connectors.

Install or Connect

1. Vacuum connectors.
2. Electrical connectors.
3. Control assembly to the instrument panel.
^ Align tab on control with slot in instrument panel.
^ Pivot control assembly into the instrument panel.
^ One screw to retain the left edge of the control assembly.
4. Instrument cluster trim plate.
