C1 (Blue)

Connector View:





Connector View

Diagnostic Chart:

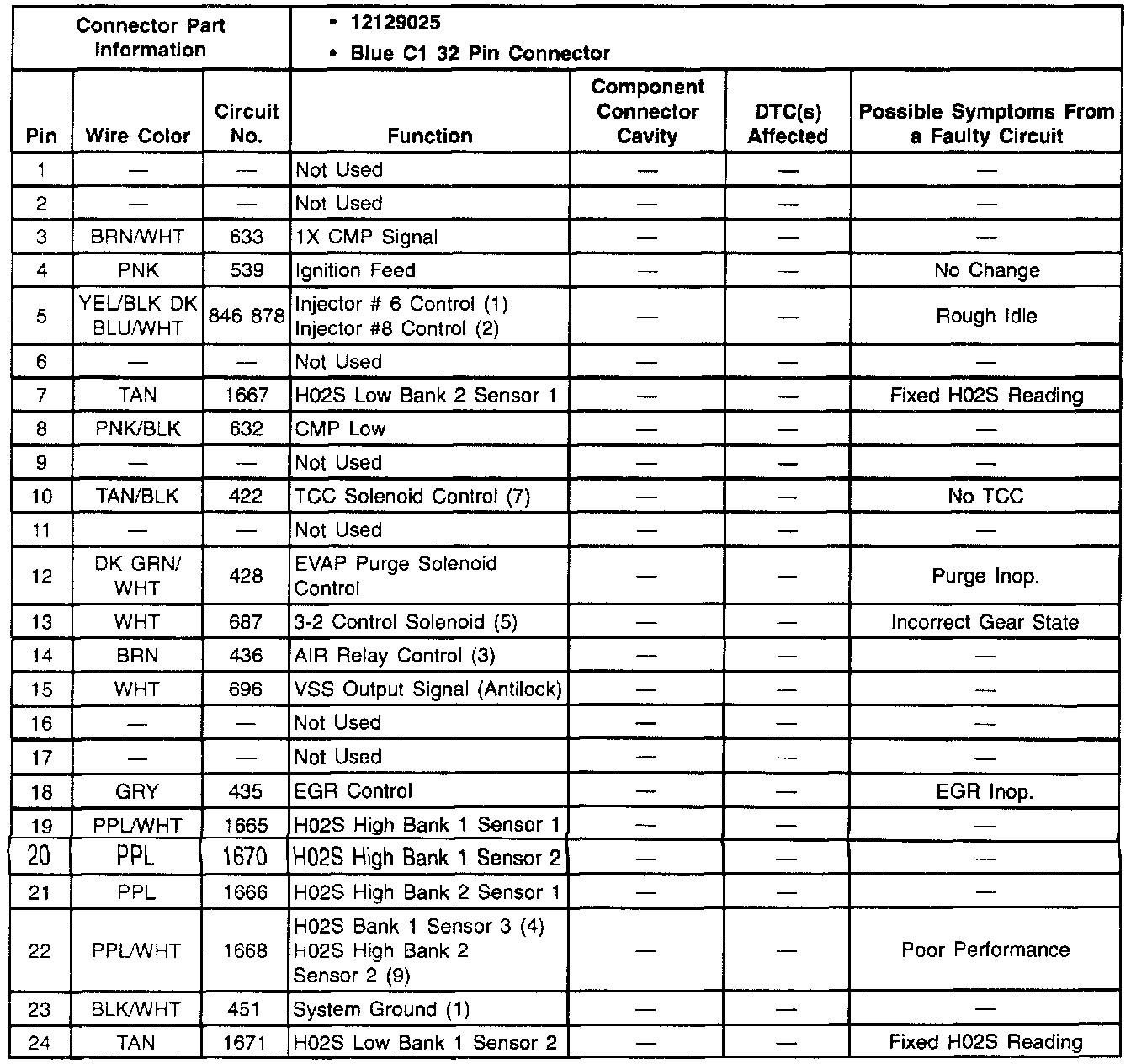

Pins 1-24

Diagnostic Chart:





Pins 25-32
