Home >> Chevy Truck >> 1993 >> Suburban 1/2 Ton 2WD V8-393 6.5L DSL Turbo >> Repair and Diagnosis >> Windows and Glass >> Windows >> Diagrams >> Electrical Diagrams

Electrical Diagrams

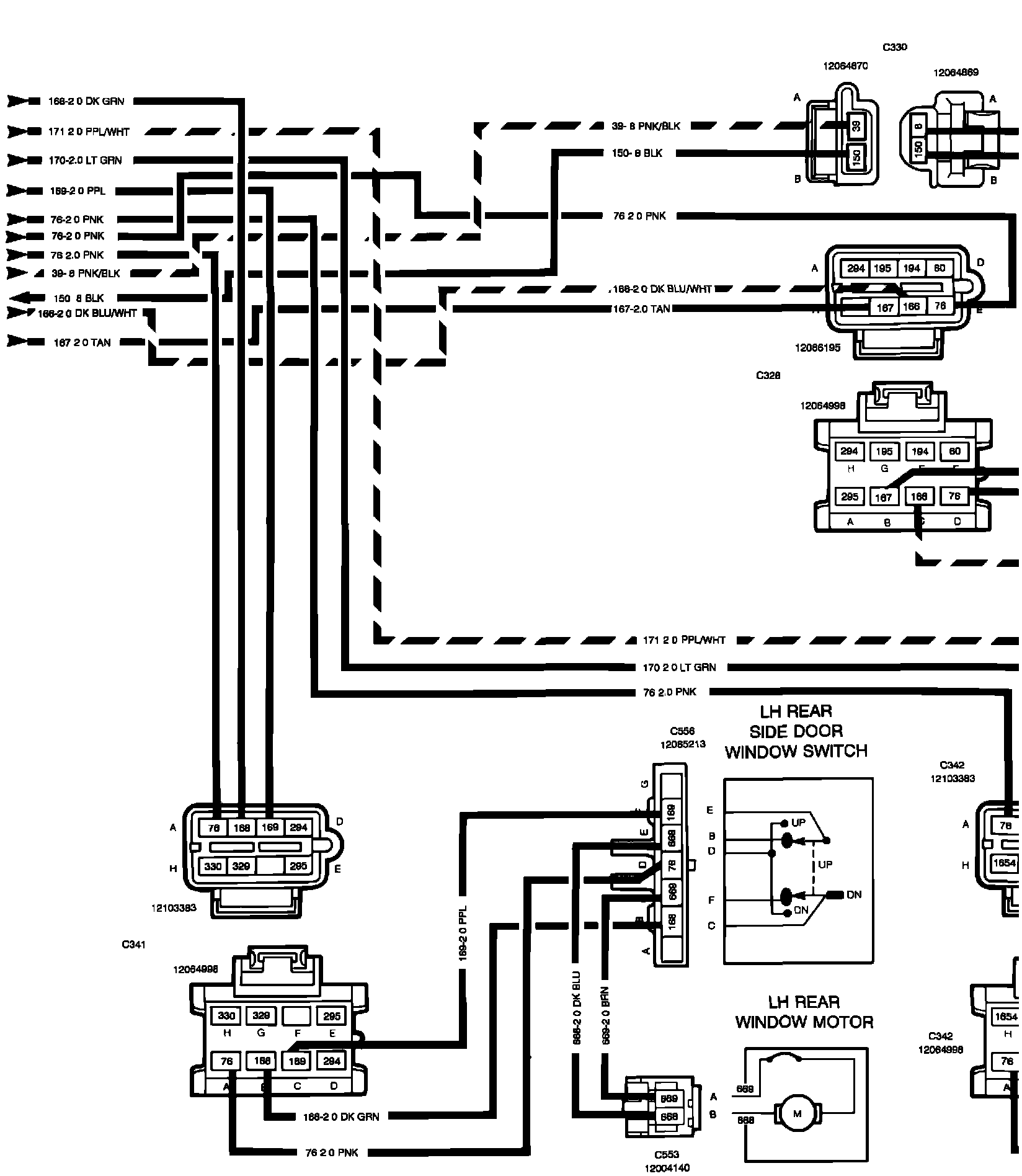

��FPower Windows - Crew Cab And Suburban:

��FPower Windows - Crew Cab And Suburban:
