Home >> Chevy Truck >> 1993 >> Suburban 1/2 Ton 2WD V8-393 6.5L DSL Turbo >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Fastener Tightening Specifications - Sequence

Fastener Tightening Specifications - Sequence

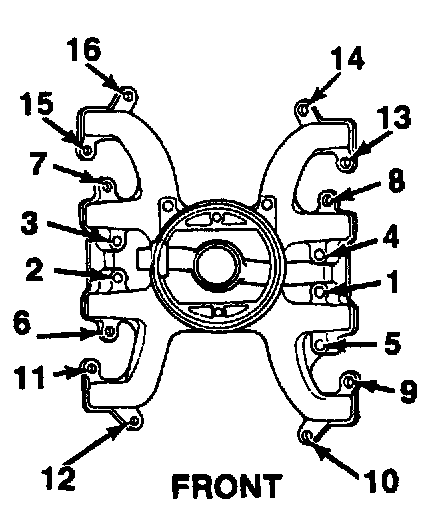

Intake Manifold Sequence (6.2L):

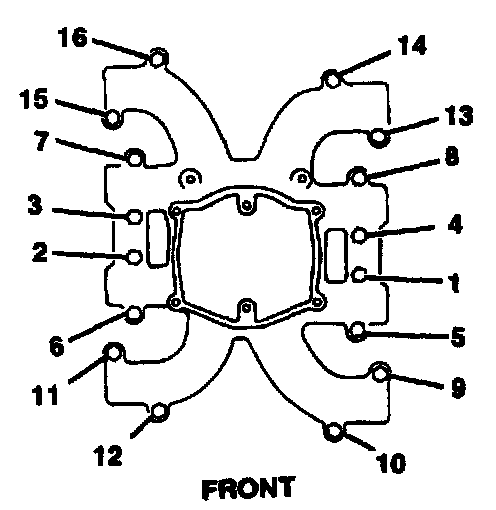

Intake Manifold Sequence (6.5L):
