Home >> Chevy Truck >> 1993 >> Suburban 1/2 Ton 2WD V8-393 6.5L DSL Turbo >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Cooling System >> Coolant Level Sensor >> Locations

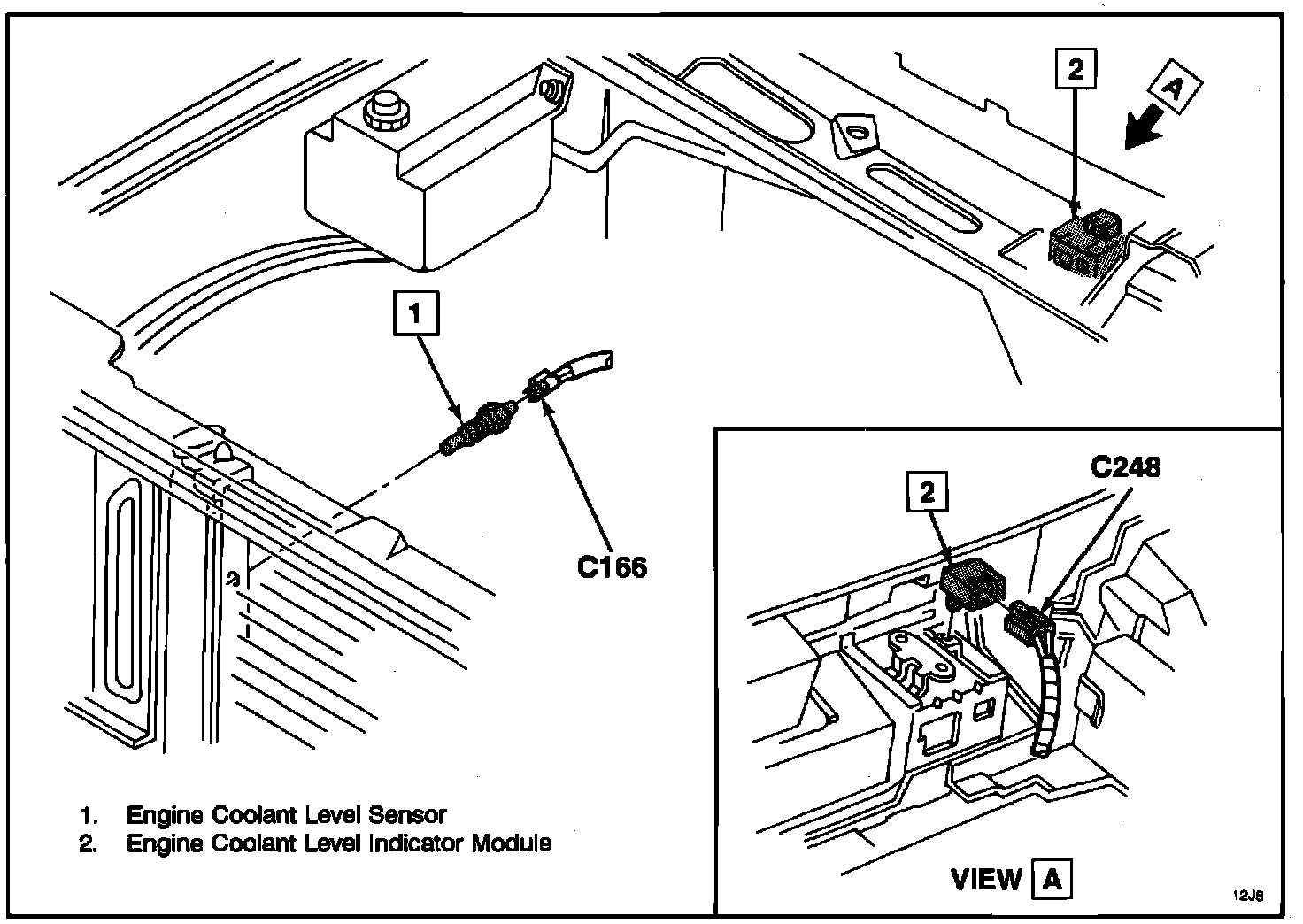

Coolant Level Sensor: Locations

Low Coolant Probe And Module - Diesel Engines:
