Home >> Chevy Truck >> 1993 >> Suburban 1/2 Ton 2WD V8-393 6.5L DSL Turbo >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Electronic/Powertrain Control Module (ECM/PCM) >> ECM/PCM Inputs >> Manual Transmission

Manual Transmission

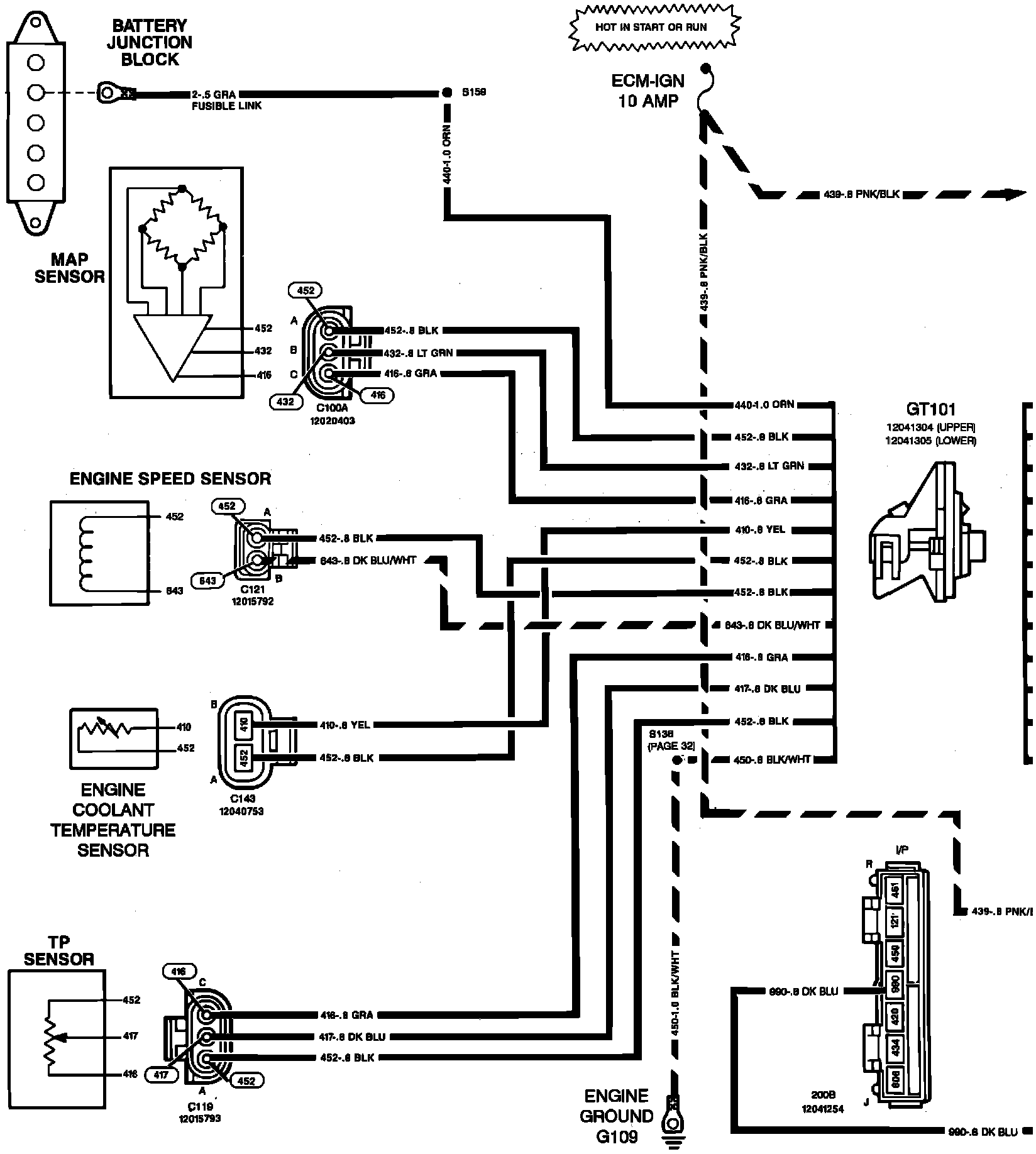

�.�#Engine Control Module Inputs - Diesel Engines:
