Automatic Transmission

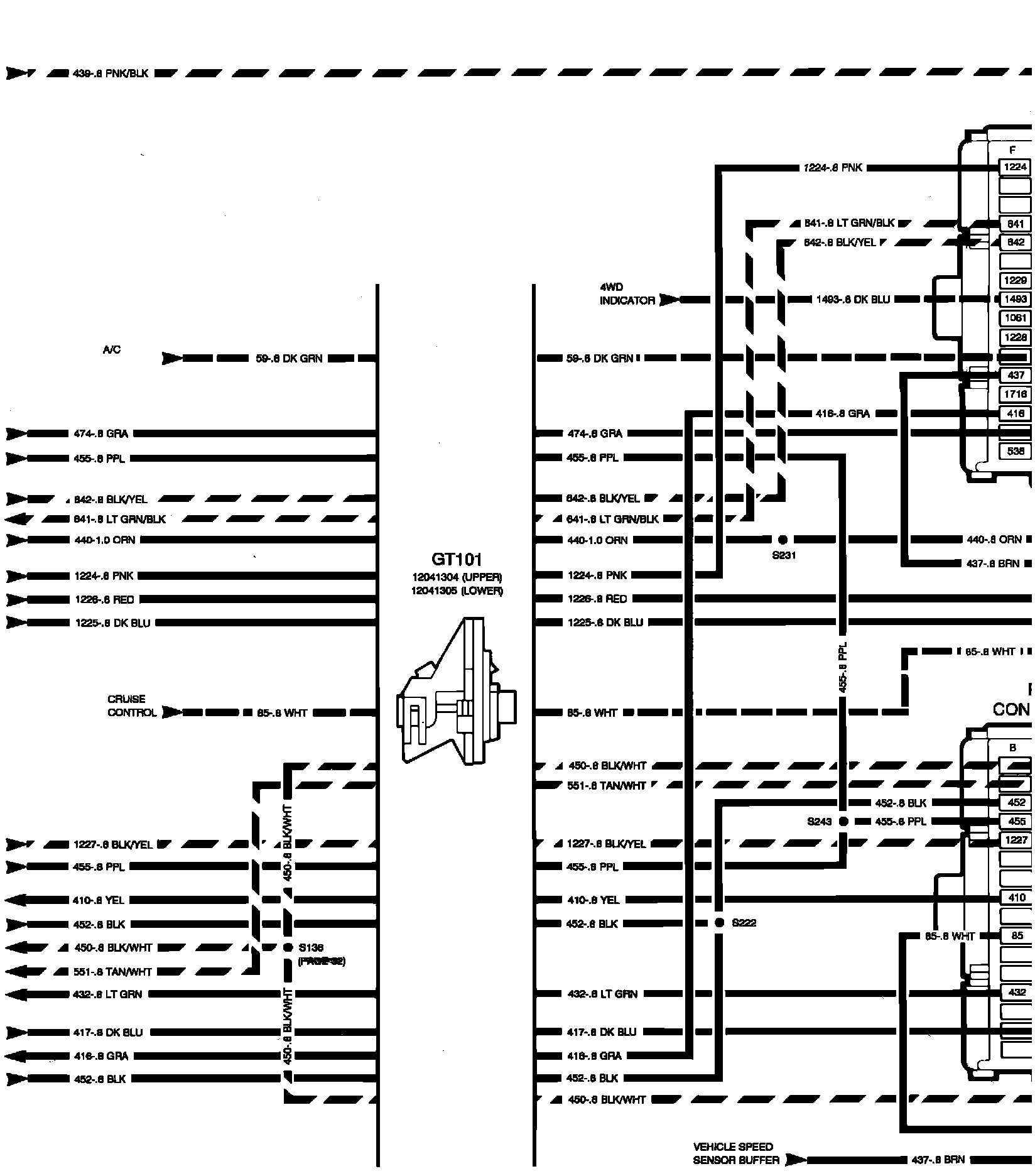

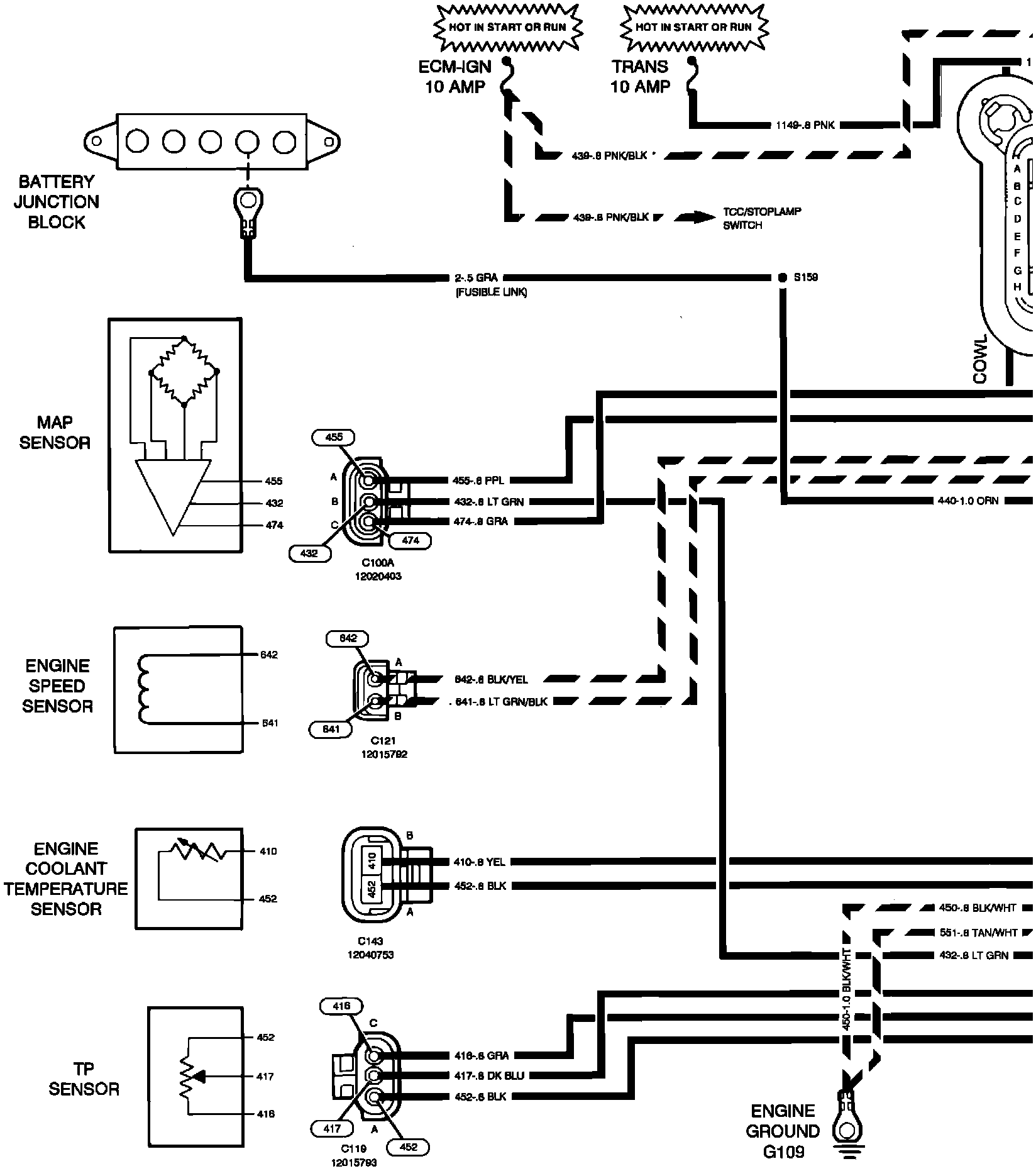

g#Powertrain Control Module Inputs - Diesel Engines W/4-SPD Automatic Overdrive Transmission:



�yg#Powertrain Control Module Inputs - Diesel Engines W/4-SPD Automatic Overdrive Transmission:
