Home >> Chevy Truck >> 1993 >> Suburban 1/2 Ton 2WD V8-393 6.5L DSL Turbo >> Repair and Diagnosis >> Heating and Air Conditioning >> Blower Motor >> Testing and Inspection >> With Air Conditioning >> Rear >> Rear Blower Operates Only From Console Front Control Switch

Rear Blower Operates Only From Console Front Control Switch

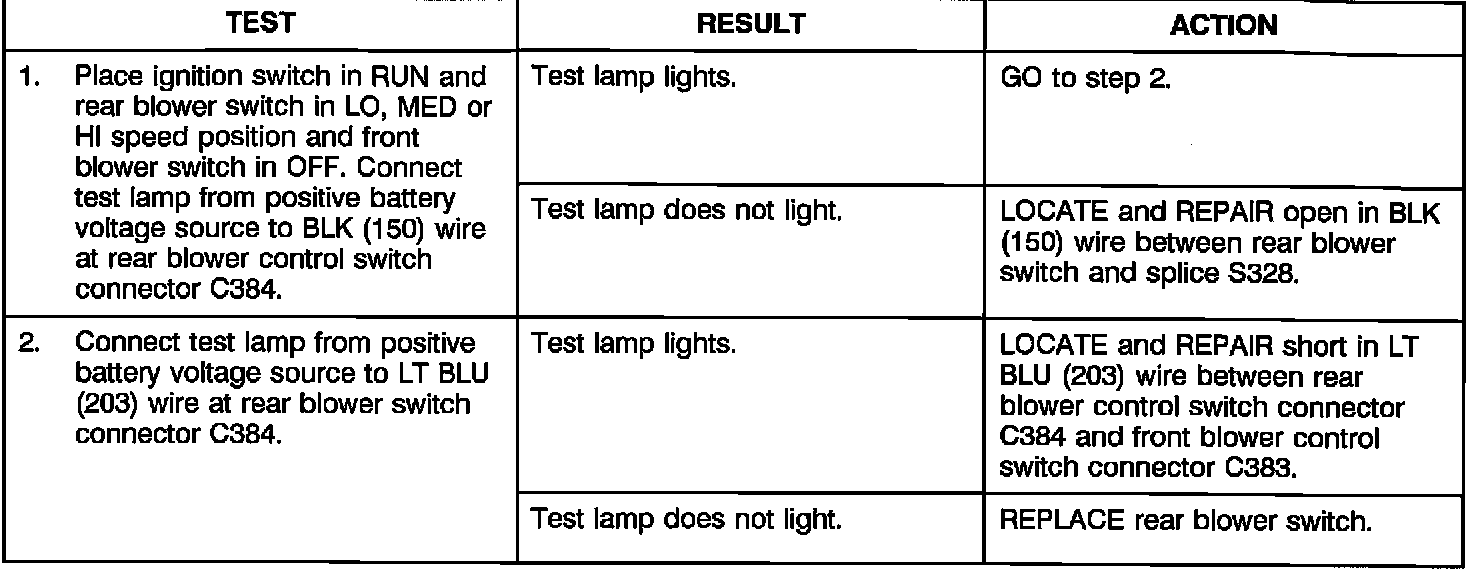

All Rear Blower Speeds Operate But Only From Console Front Control Switch:
