Home
>>
Chevy Truck
>>
1993
>>
Suburban 1/2 Ton 2WD V8-393 6.5L DSL Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Fuel Pump Control
Fuel Pump Control

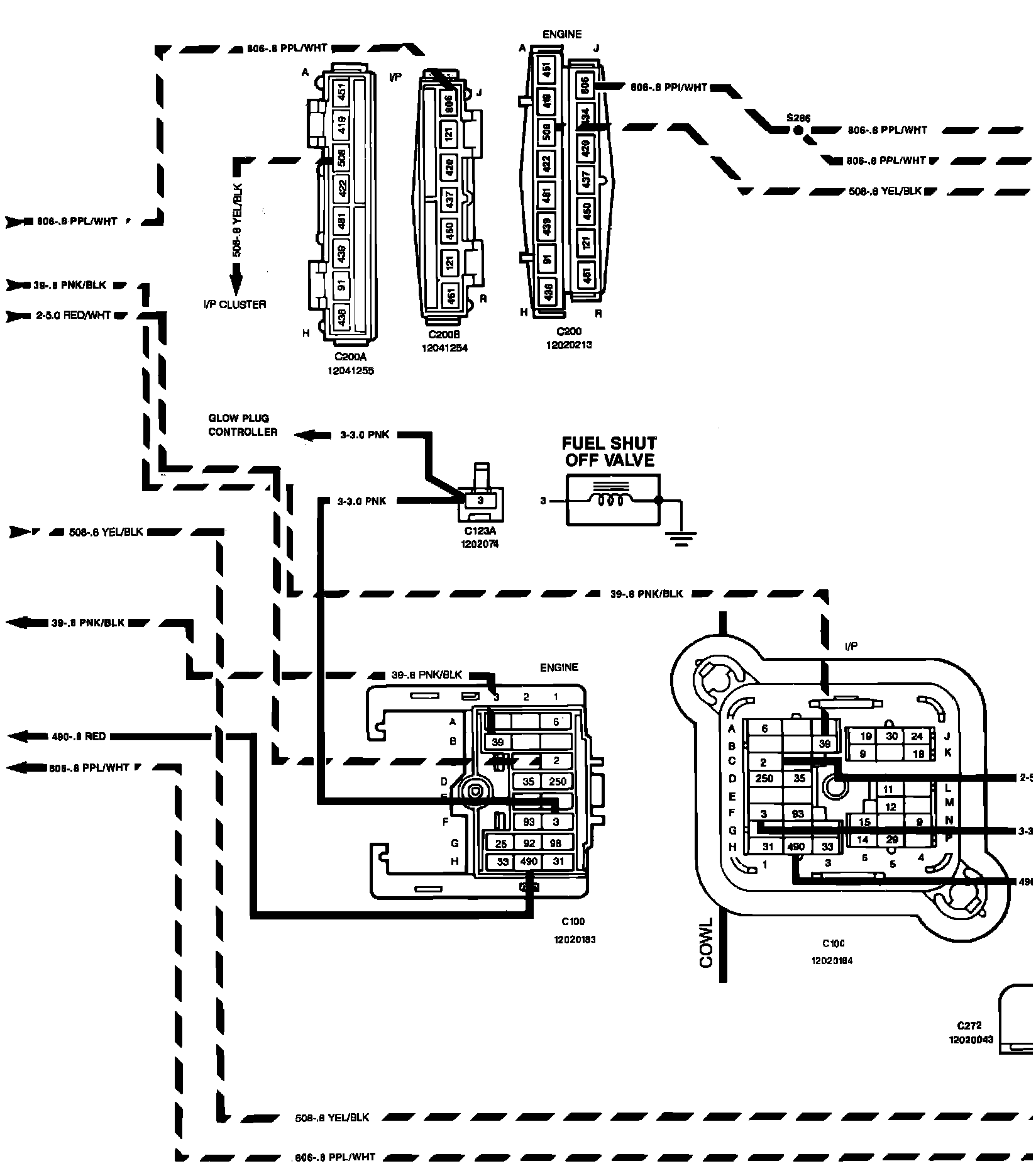

p�%Fuel Controls - Heavy Duty And Turbo Diesel Engine:
�%Fuel Controls - Heavy Duty And Turbo Diesel Engine:
