Home >> Chevy Truck >> 1993 >> Suburban 1/2 Ton 2WD V8-393 6.5L DSL Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Turn Signals >> System Diagram >> Snowplow Preparation Package

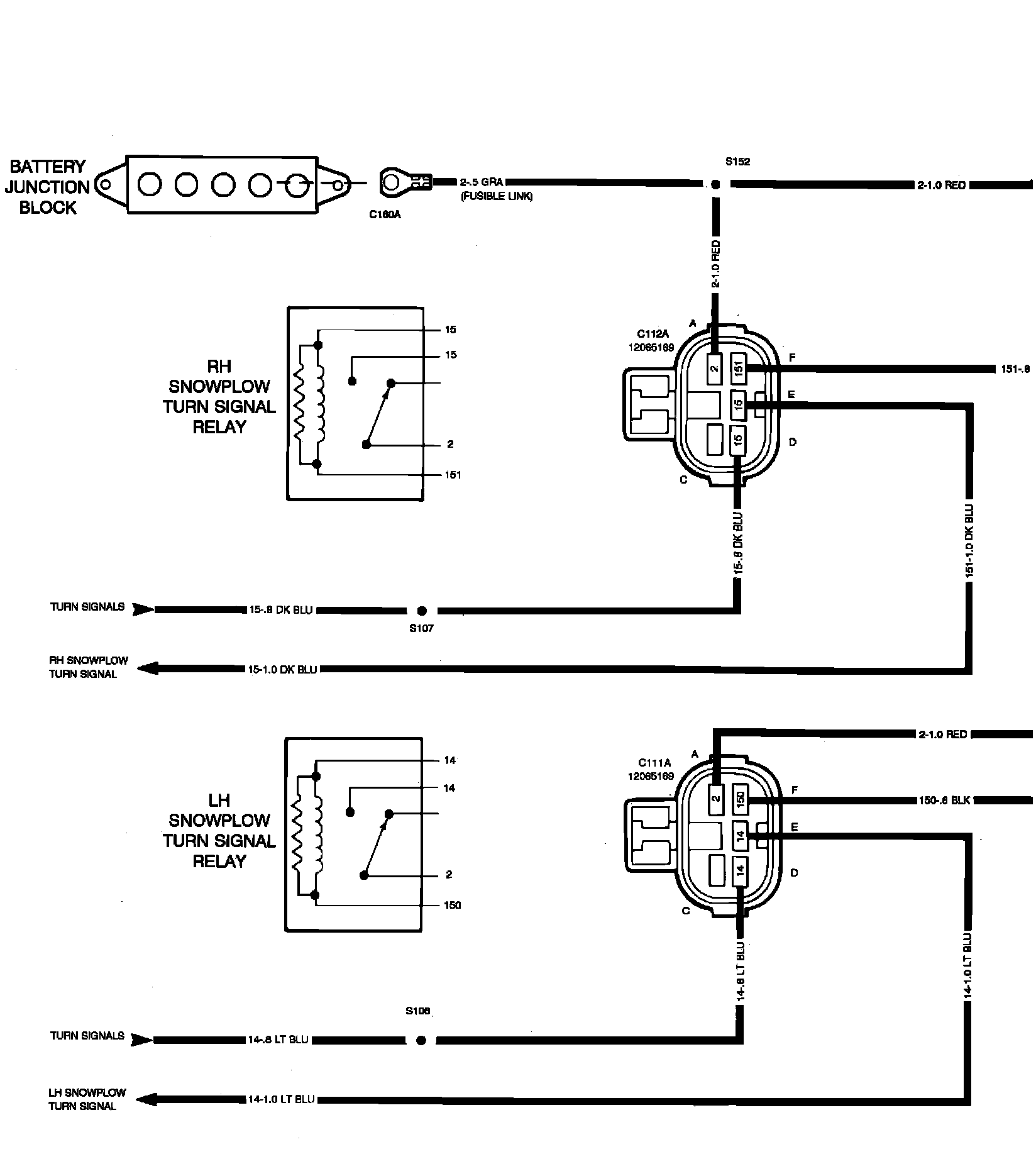

Snowplow Preparation Package

�ESnowplow Preparation Package:
