Home
>>
Chevy Truck
>>
1993
>>
Suburban 1/2 Ton 2WD V8-393 6.5L DSL Turbo
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Four Wheel Anti-Lock Brake System
Four Wheel Anti-Lock Brake System

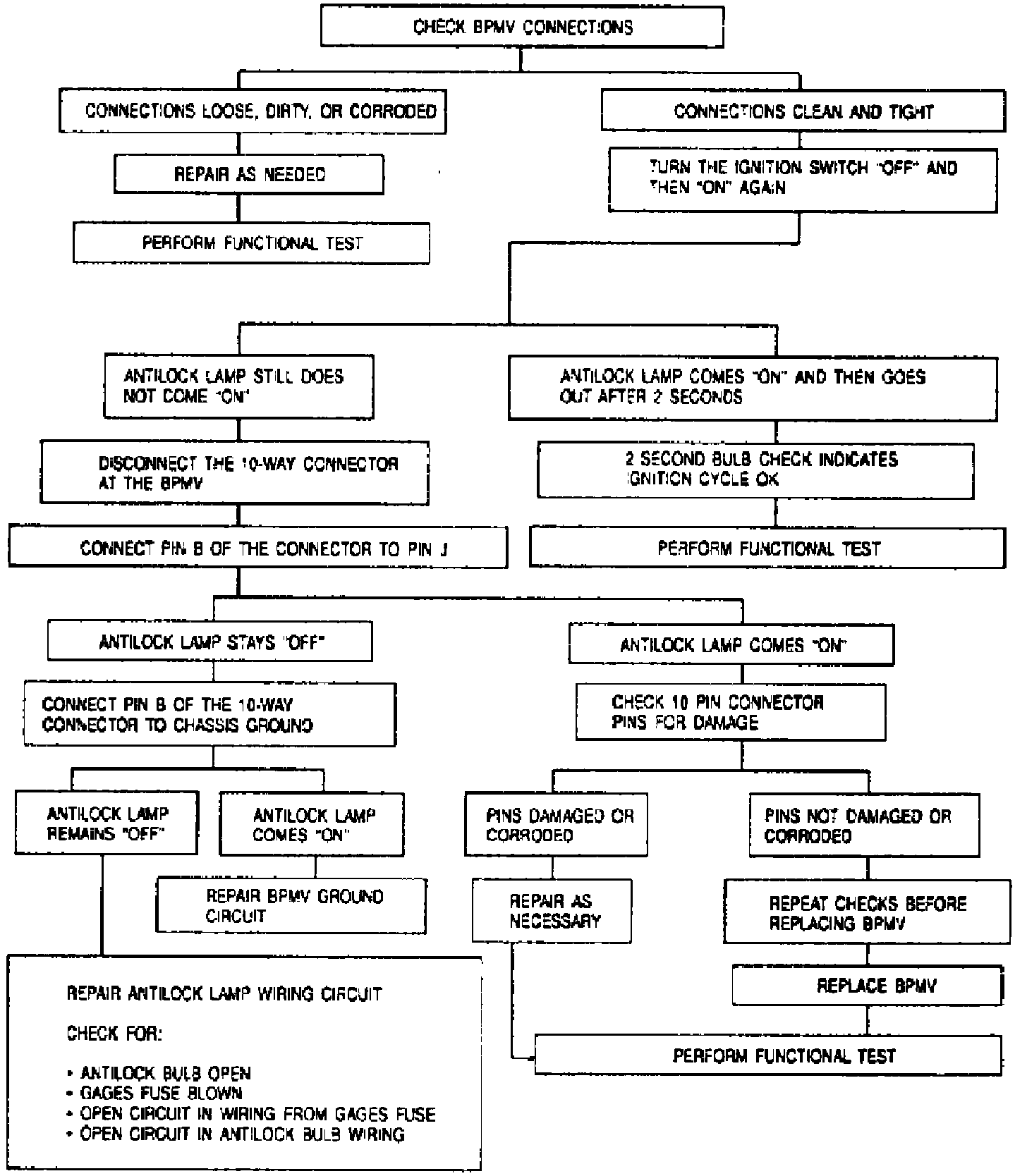

Fig. 30 Anti-Lock Lamp "Off" Diagnostic Check. 1993:
