Home >> Chevy Truck >> 1993 >> Suburban 1/2 Ton 2WD V8-350 5.7L >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> Diagnostic Charts >> Front >> Wipers Operate at High Speed Only

Wipers Operate at High Speed Only

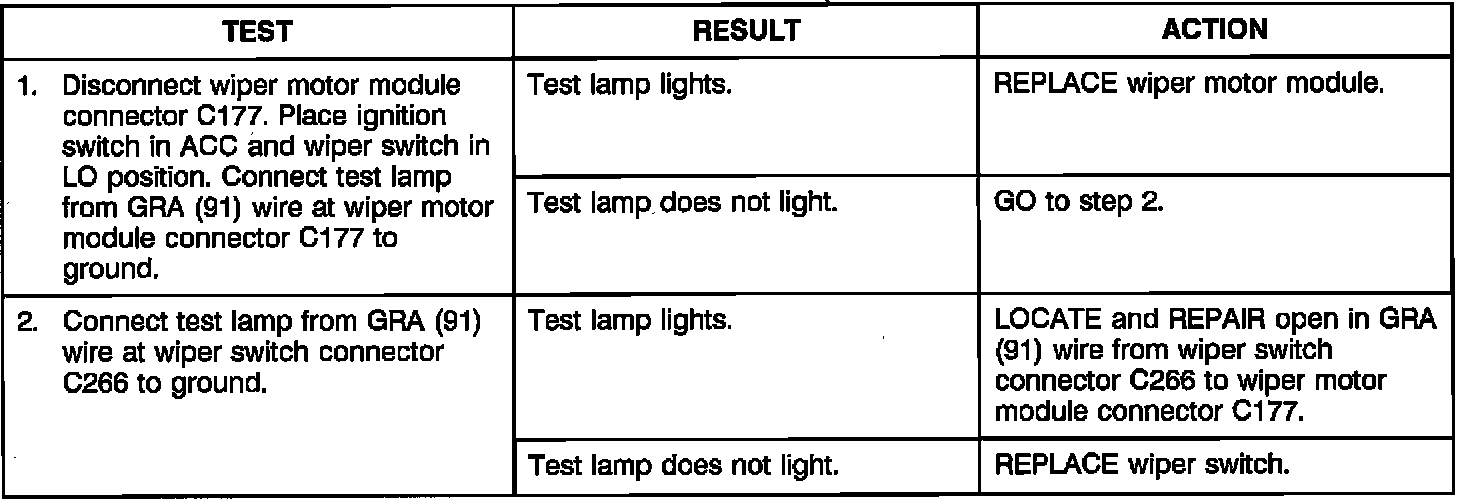

Wipers Operate At High Speed Only (Low Speed Inoperative):
