Home >> Chevy Truck >> 1993 >> Suburban 1/2 Ton 2WD V8-350 5.7L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> 4L60-E Automatic Transmission >> Functional Test

Functional Test

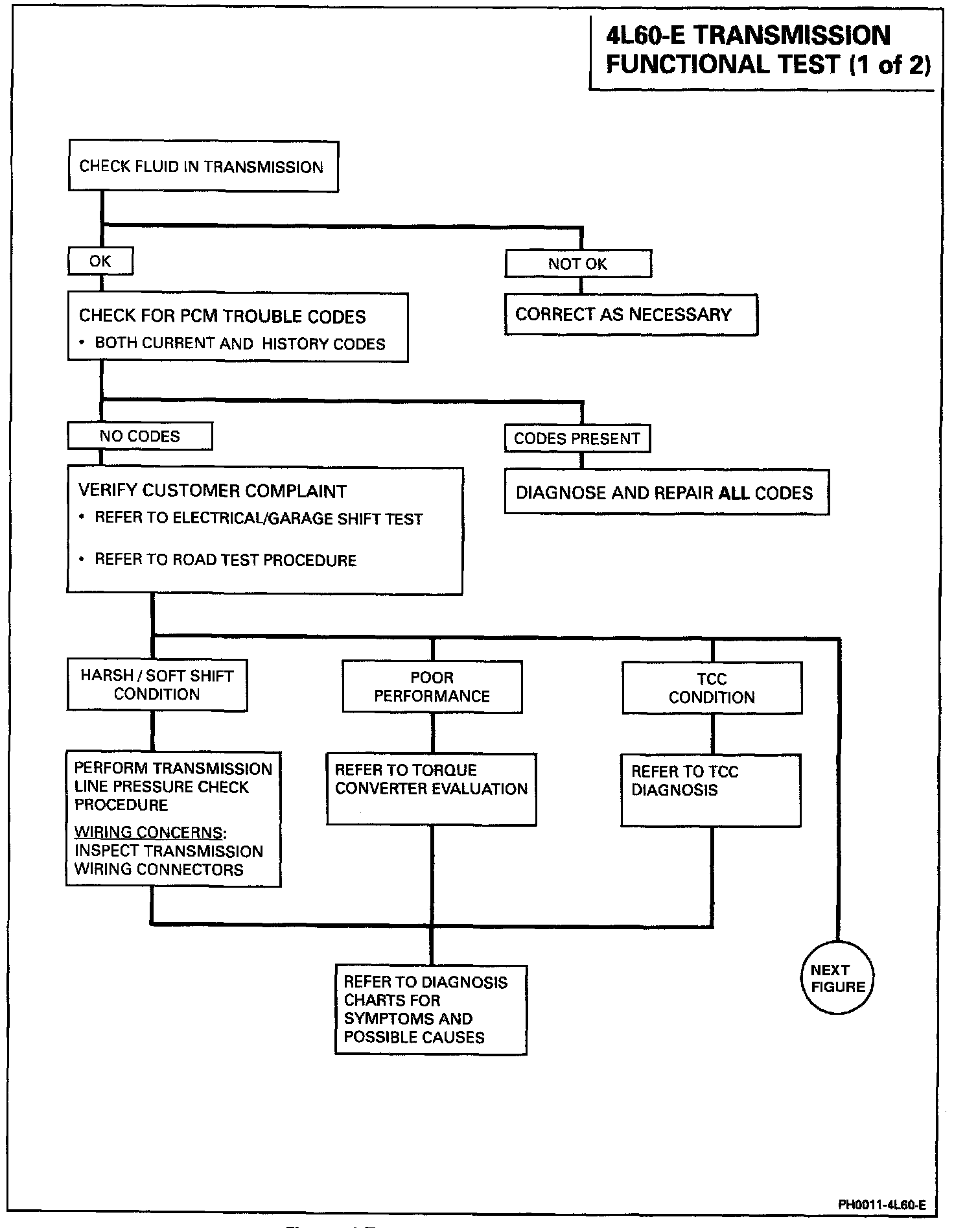

Functional Test (1 of 2):






Part 1 of 2

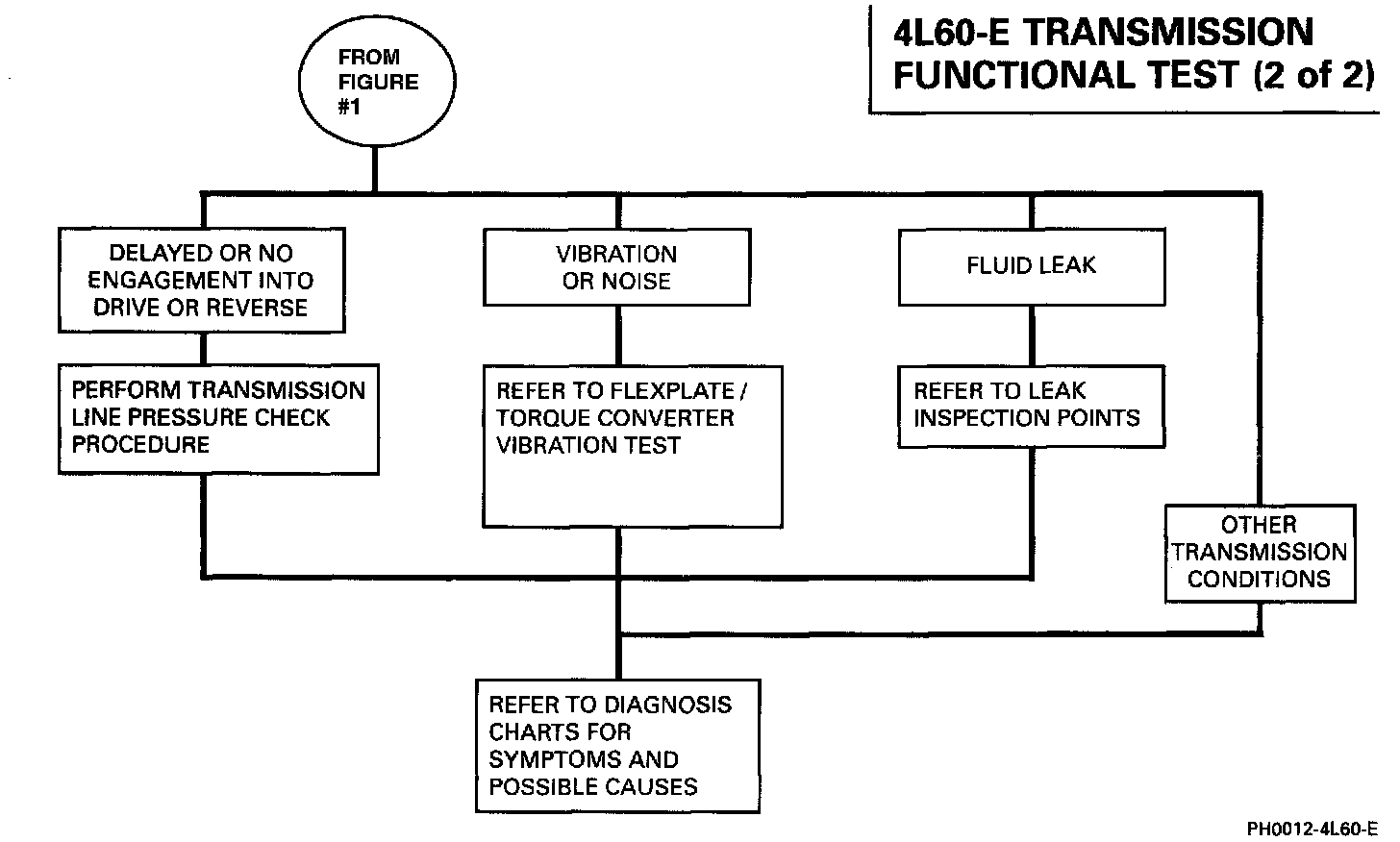

Functional Test (2 of 2):






Part 2 of 2
