Overdrive Unit

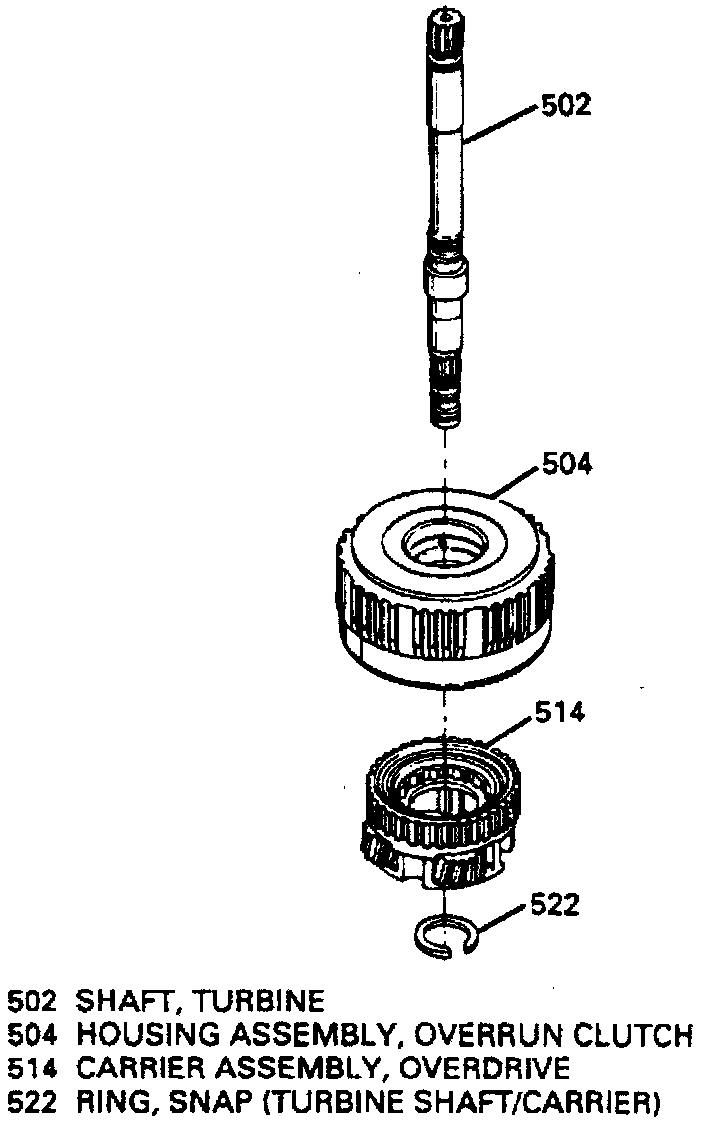

1. Remove snap ring and turbine shaft,then separate overrun carrier assembly from housing, per figure.

2. Reverse procedure to assemble.
