Power and Ground Distribution: Locations

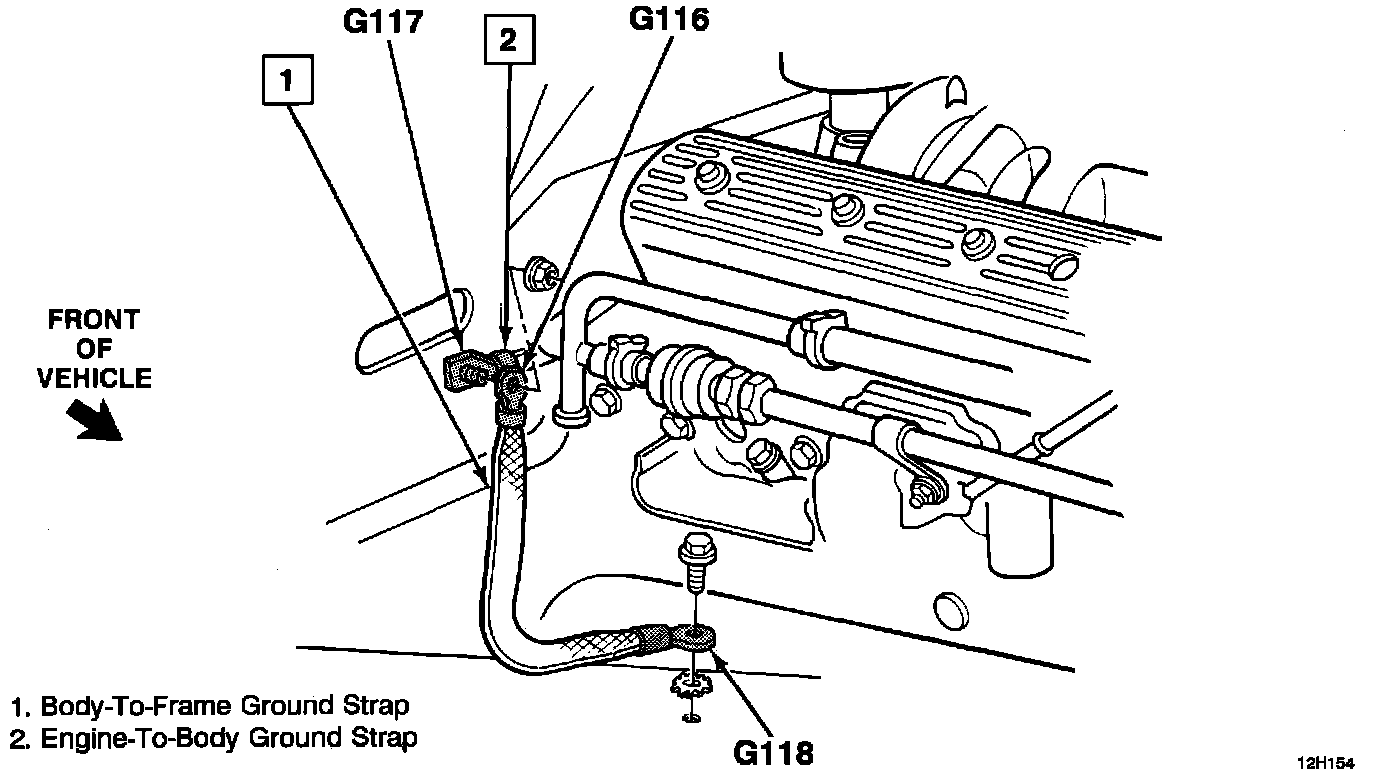

Body To Engine Ground Straps - Gasoline Engines:



Ground Straps:
