Home >> Chevy Truck >> 1993 >> Suburban 1/2 Ton 2WD V8-350 5.7L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Block Assembly >> System Specifications >> Dimension & Clearance Specifications - Engine

Dimension & Clearance Specifications - Engine

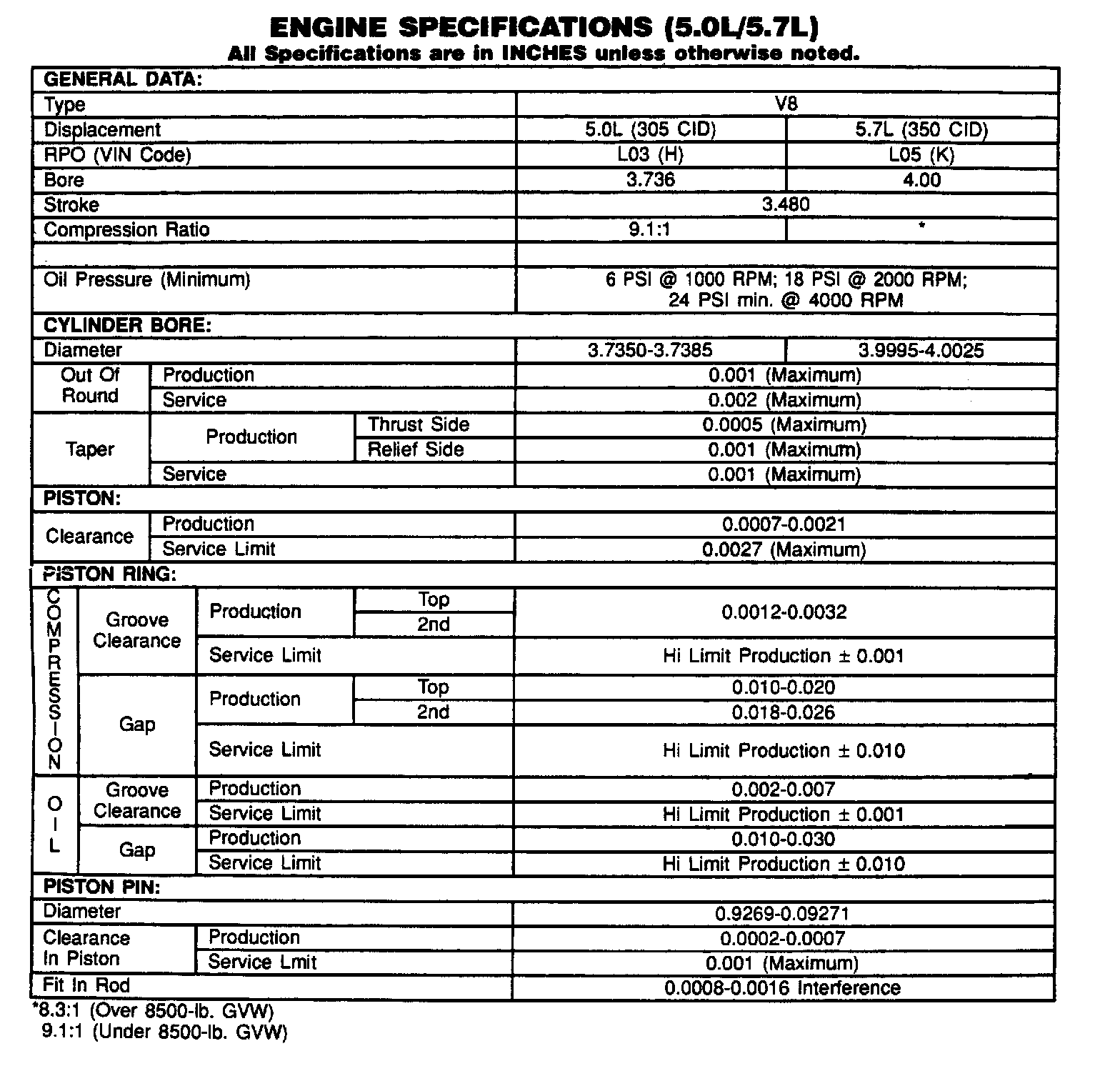

Engine Specifications:

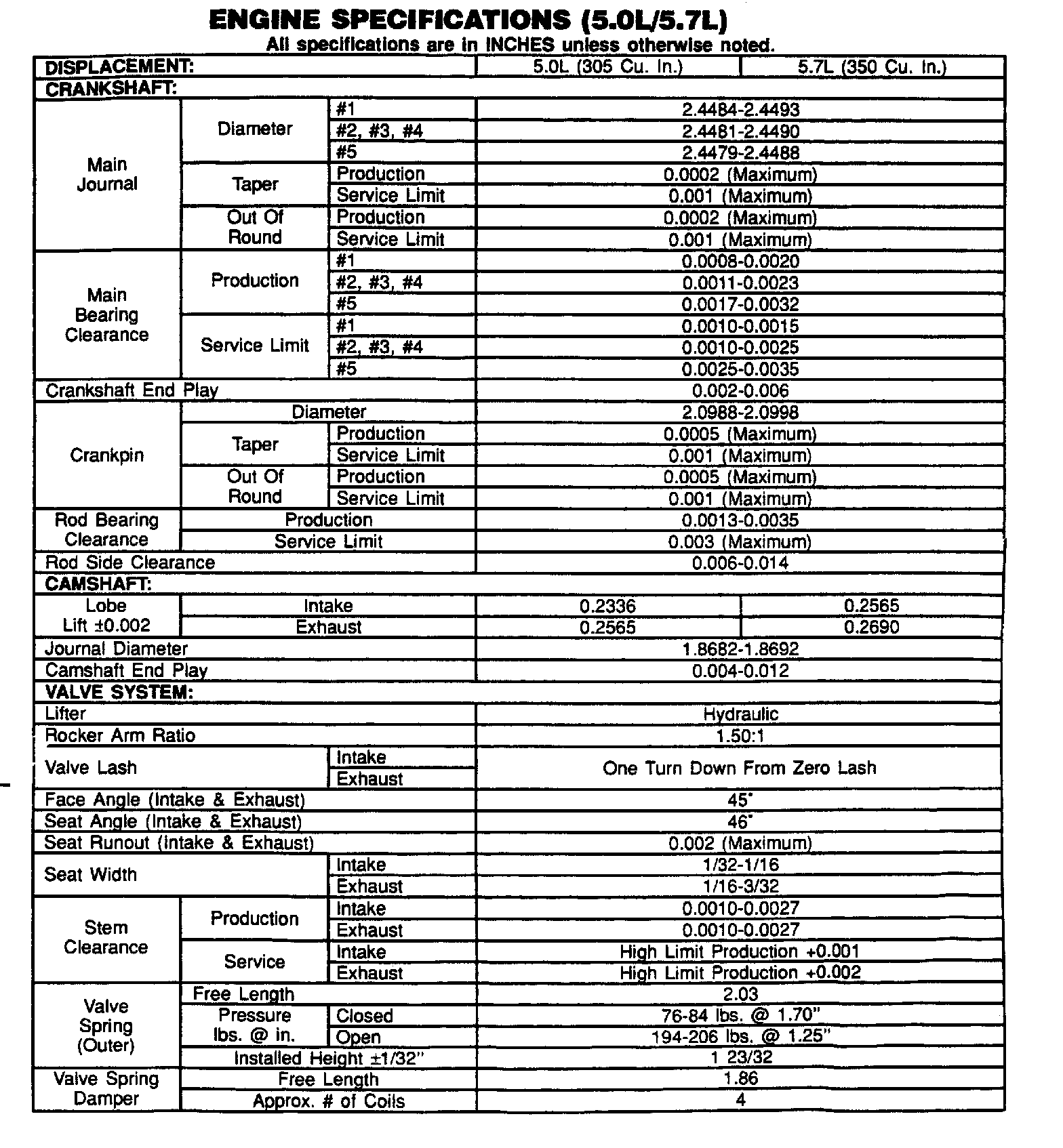

Engine Specifications:
