Home >> Chevy Truck >> 1993 >> Suburban 1/2 Ton 2WD V8-350 5.7L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - HVAC >> Blower Motor Relay >> Locations >> Primary Heater >> Medium Blower Relay

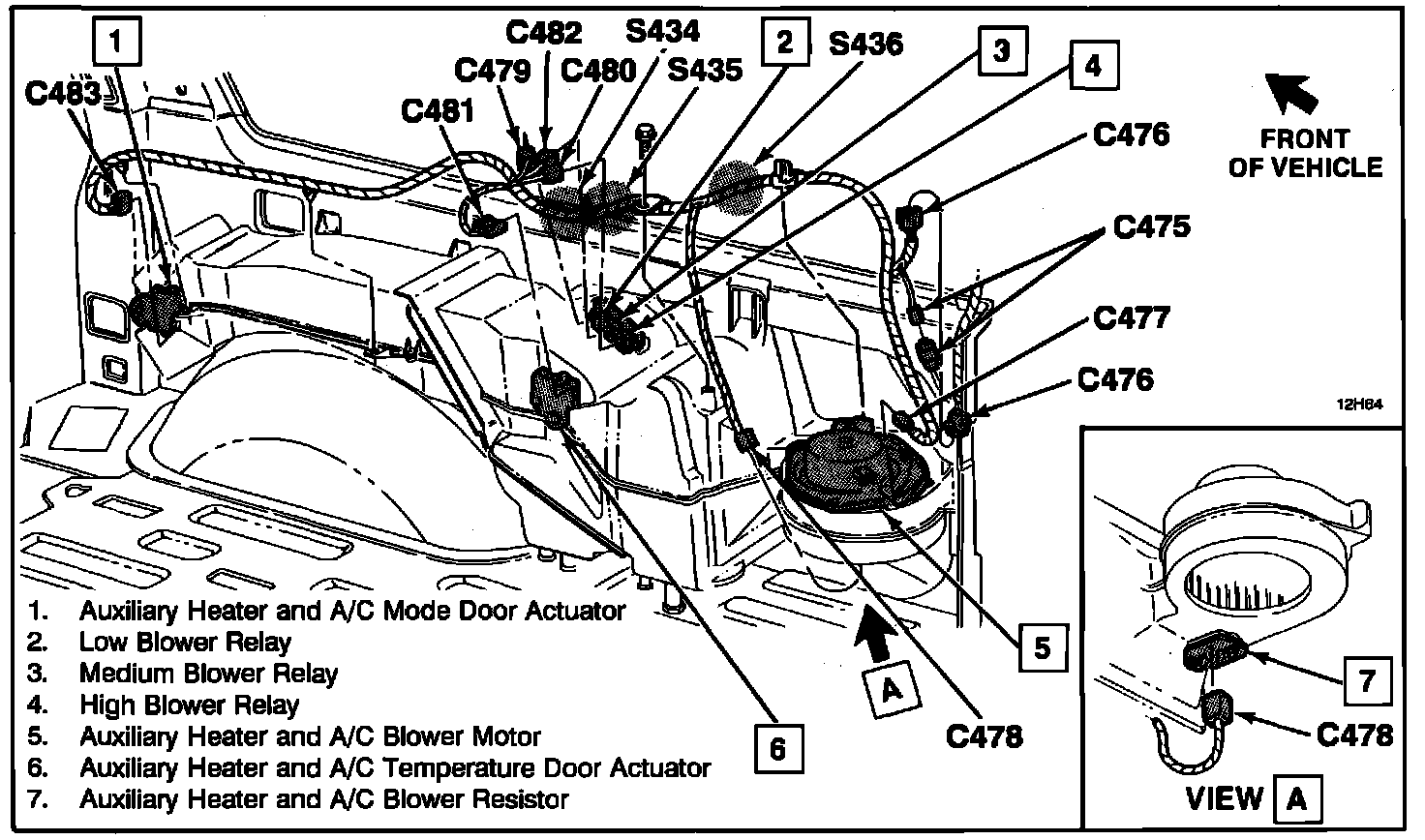

Medium Blower Relay

Auxiliary Heater And A/C Wiring:
