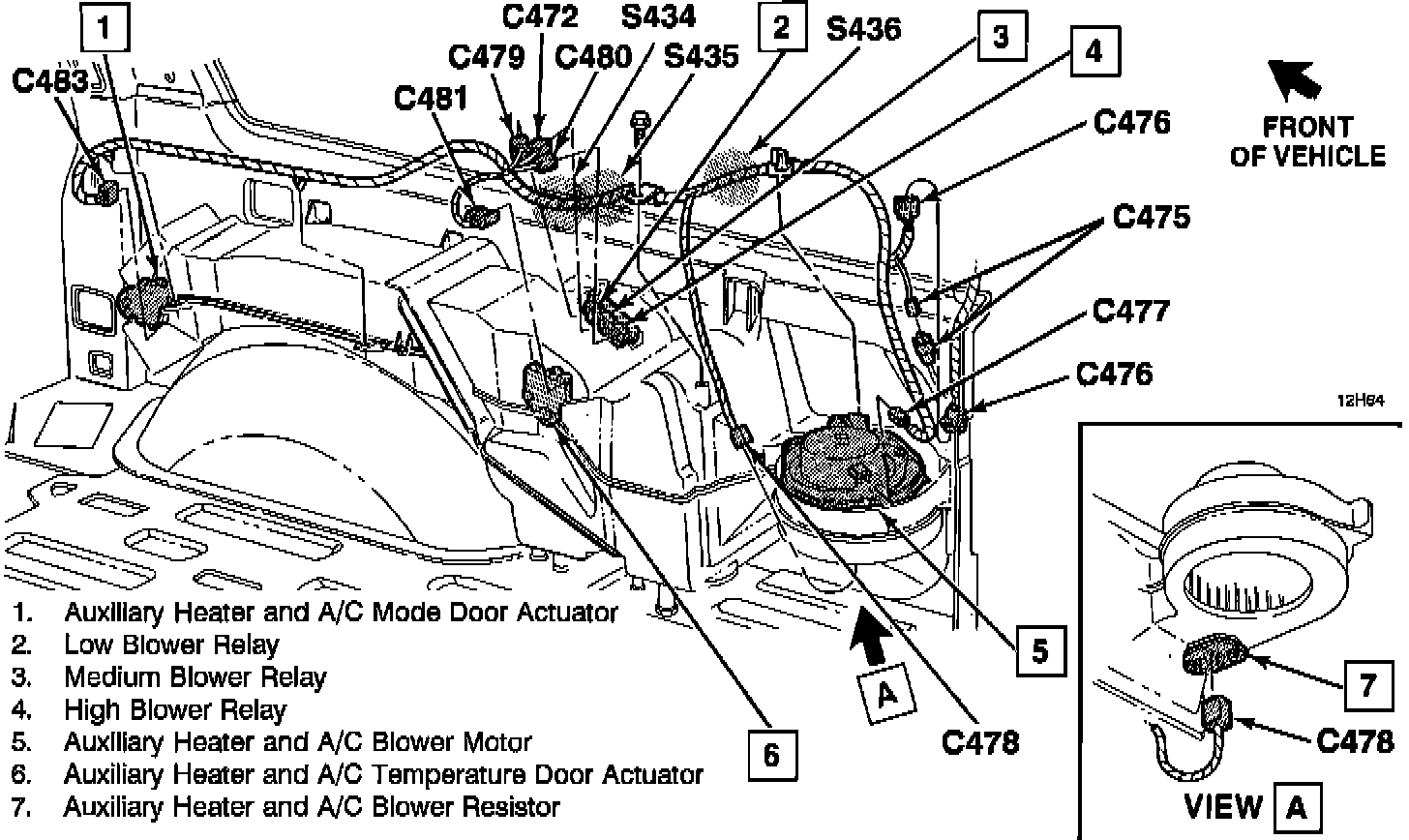

Low Blower Relay

Auxiliary Heater A/C Wiring:





On auxiliary heater and A/C module

Heater And A/C Harness Wiring:





Under center of I/P on heater-A/C case
