Rear Wheel Antilock (RWAL) Module

Electronic Brake Control Module:

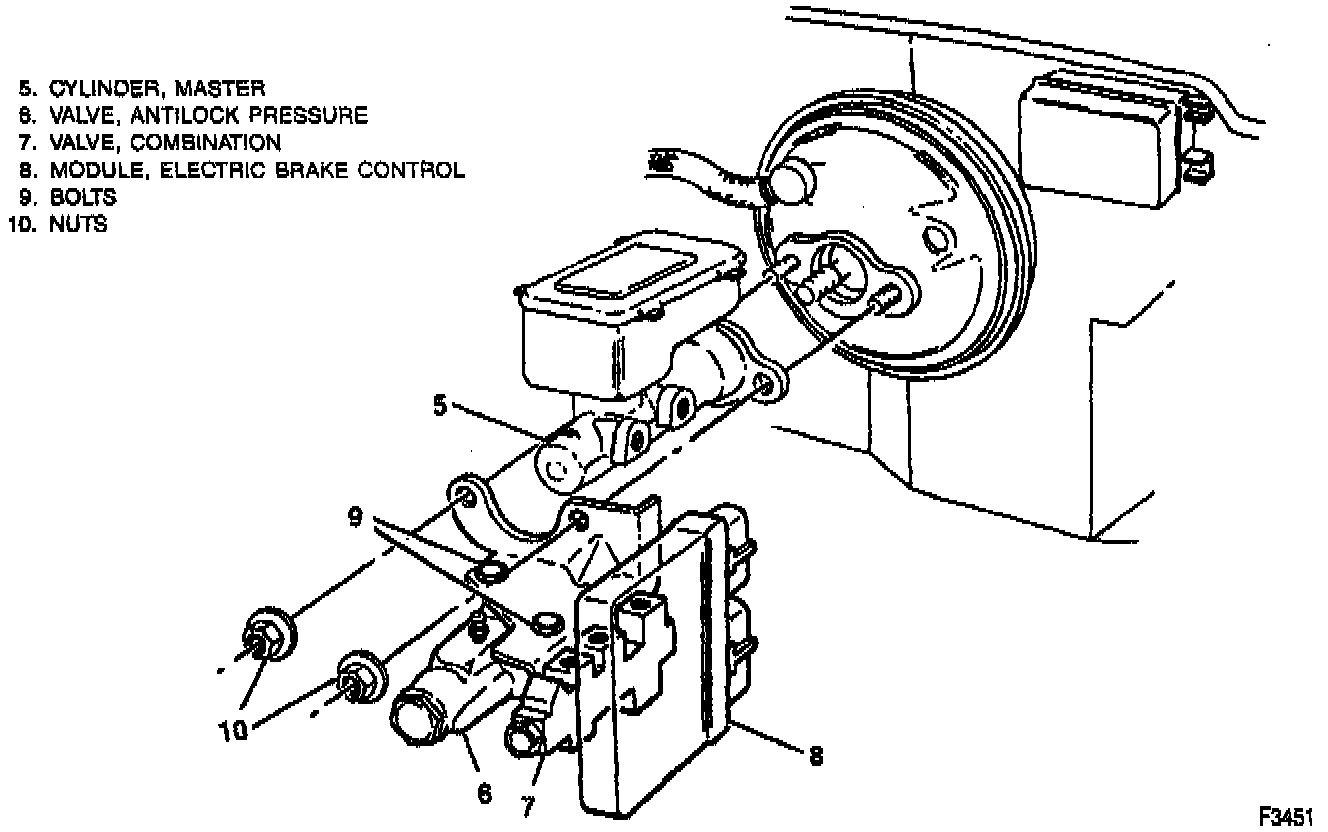

The Electronic Brake Control Module (EBCM) is located on a bracket next to the brake master cylinder.
