4L80-E Automatic Transmission

Transmission Exterior Electrical Connections:

Speed Sensor Assembly:

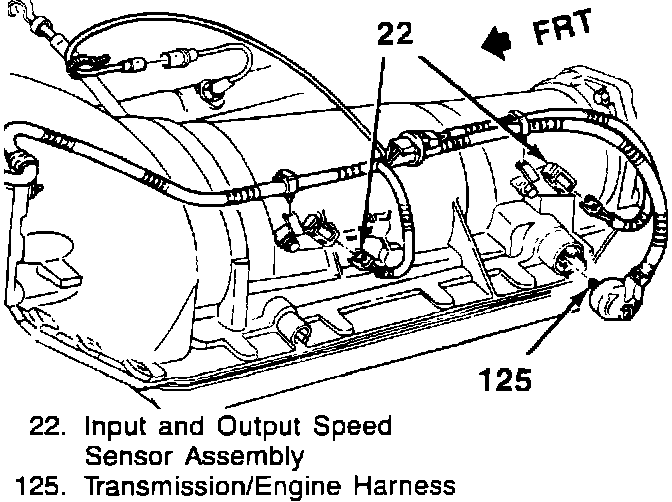

Both speed sensors are accessible from the left hand side of the transmission. The input speed sensor is just forward of center and the output speed sensor is near the rear.
