Home >> Chevy Truck >> 1993 >> Suburban 1/2 Ton 2WD V8-350 5.7L >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Fuel Pump >> Diagrams >> Electrical Diagrams >> With PCM >> With 4L80-E Transmission

With 4L80-E Transmission

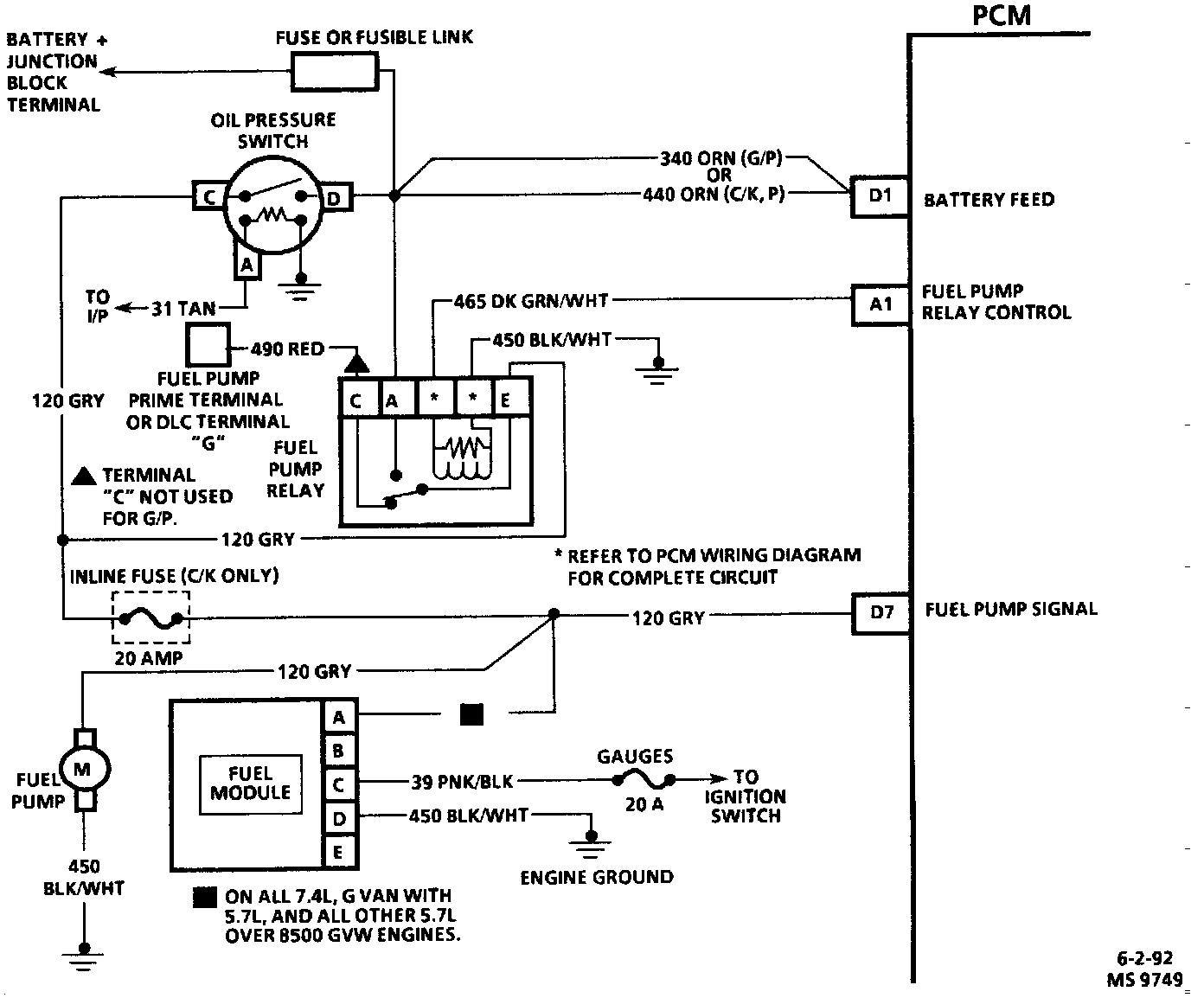

Fuel Pump Relay Circuit (91PCM6):
