Chevy Truck
>>
1993
>>
Suburban 1/2 Ton 2WD V8-350 5.7L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Electronic/Powertrain Control Module (ECM/PCM)
>>
ECM/PCM Inputs/Outputs
>>
ECM/PCM Outputs
>>
Automatic Transmission
>>
With 4L60-E Automatic Transmission
With 4L60-E Automatic Transmission

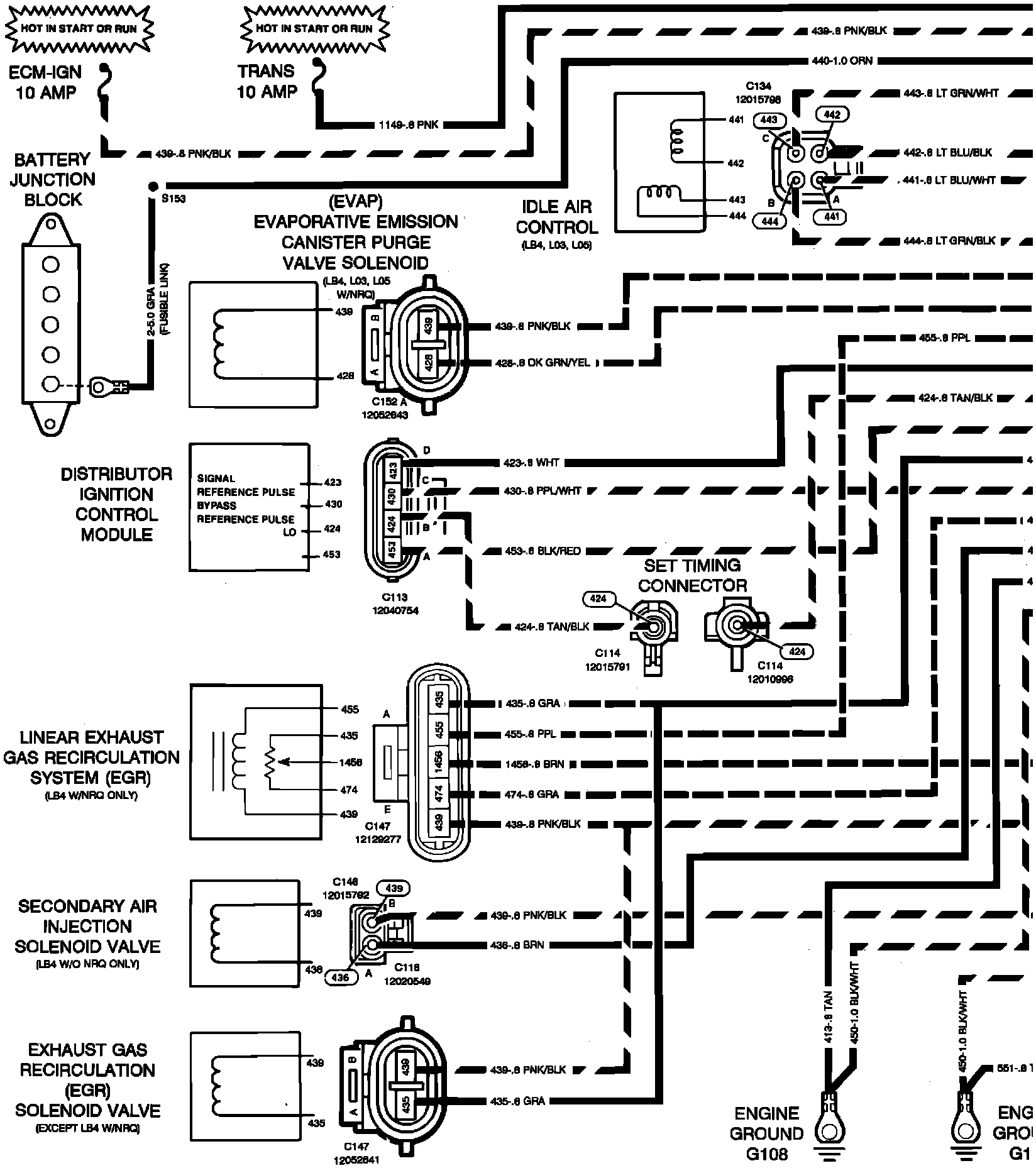

��$Powertrain Control Module Outputs - Gasoline Engines W/4-SPD Automatic Overdrive Transmission:

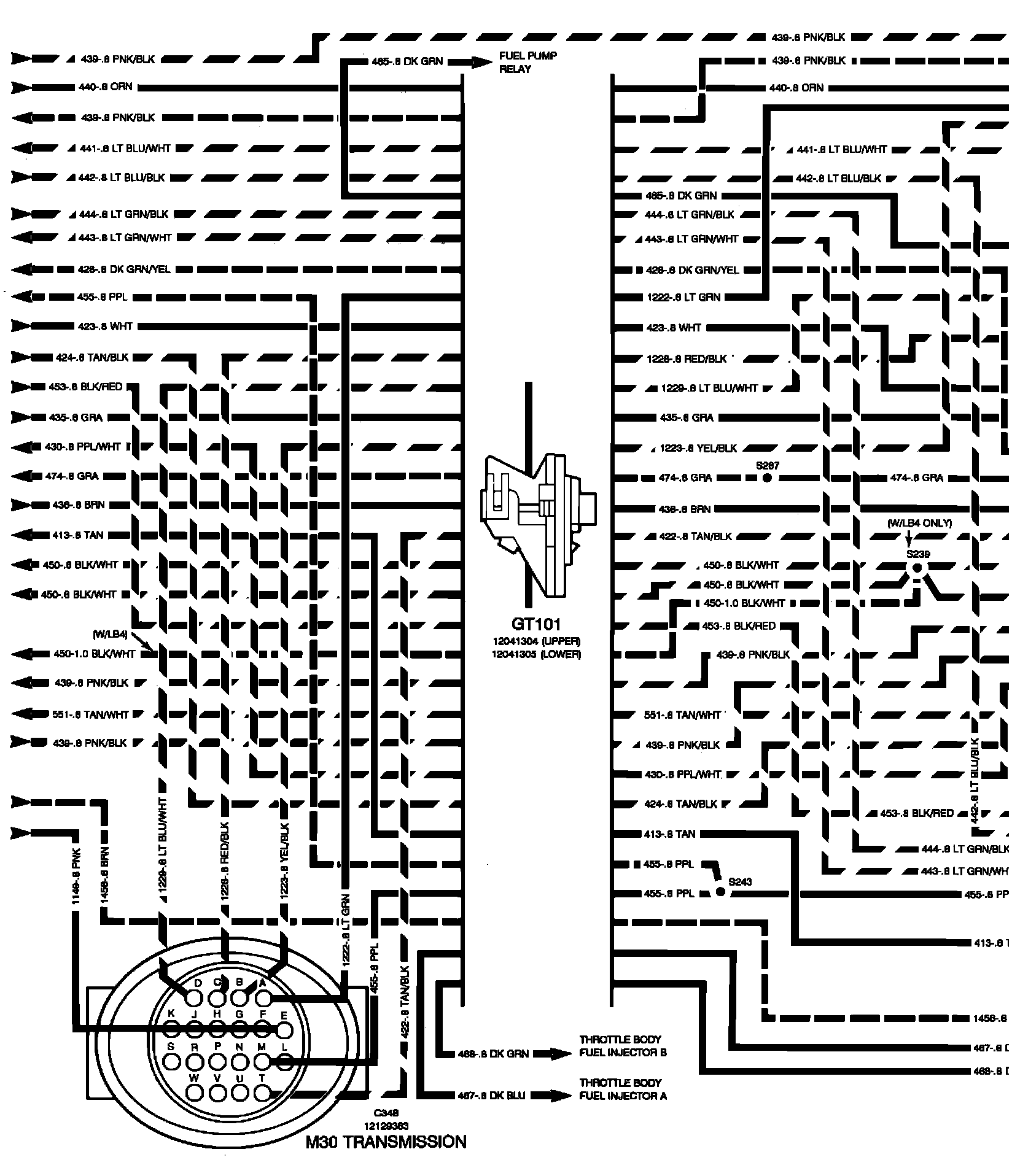

�U$Powertrain Control Module Outputs - Gasoline Engines W/4-SPD Automatic Overdrive Transmission:
