Idle Speed/Throttle Actuator - Electronic: Description and Operation

Idle Air Control (IAC) System:

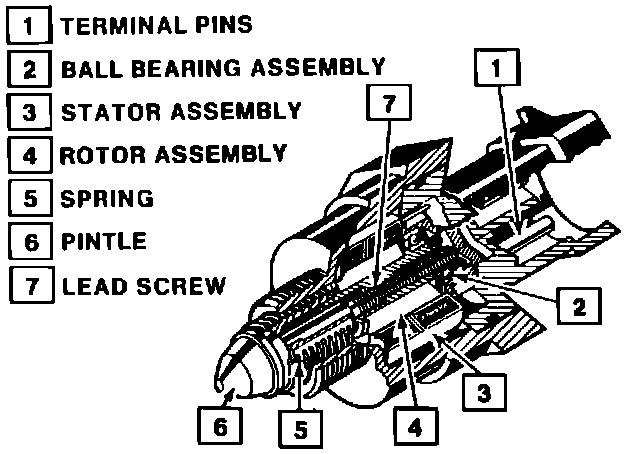

Idle Air Control Valve:

IAC System:

PURPOSE
To control engine idle speed and prevent stalling due to changes in engine load.

OPERATION
All engine idle speeds are controlled by the control module through the Idle Air Control (IAC) valve mounted on the throttle body. The control module sends voltage pulses to the IAC motor windings causing the IAC motor shaft and pintle to move "IN" or "OUT" a given distance (number of steps) for each pulse (called counts). Inward movement of the pintle = Decreased RPM =Lower Counts. Outward movement of the pintle = Increased RPM = Higher Counts.

This movement controls airflow around the throttle plate, which in turn, controls engine idle speed, either cold or hot. IAC valve pintle position counts can be seen using a Tech 1 scan tool. Zero (0) counts correspond to a fully closed passage, while 140 counts or more (depending on the application) corresponds to full flow.

Actual or "controlled" idle speed is obtained by the control module positioning the IAC valve pintle. Resulting idle speed is generated from the total idle air flow (IAC/passage + [1][2]PCV + throttle valve + vacuum leaks).

Controlled idle speed is always specified for normal operating conditions. Normal operating condition is engine coolant temperature in operating range, the A/C is "OFF," manual transmission is in neutral or automatic transmission in drive with proper Park/Neutral Position (PNP) switch adjustment. A high or low engine coolant temperature, or A/C clutch engagement may signal the control module to change the IAC counts.

The minimum idle speed is set at the factory with a stop screw. This setting allows enough air flow by the throttle valves to cause the IAC valve pintle to be positioned a calibrated number of steps (counts) from the seat during normal controlled idle operation. The IAC counts will be higher than normal on an engine with less than 500 miles, or an engine operating at high altitude or an engine with an accessory load such as the alternator, A/C, power steering or hydra-boost brakes activated.

Results of Incorrect Operation
If the pintle is stuck open, the idle speed will remain high. If the pintle is stuck closed, the idle speed will be too low, and stalling may occur. If the pintle is stuck partially open, the idle speed will be higher than normal, and there will be no response to changes in engine load such as A/C ("ON") or transmission in ("Drive").
