Home
>>
Chevy Truck
>>
1993
>>
Suburban 1/2 Ton 2WD V8-350 5.7L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Diagrams
>>
Connector Views
>>
Cab and Chassis
Cab and Chassis

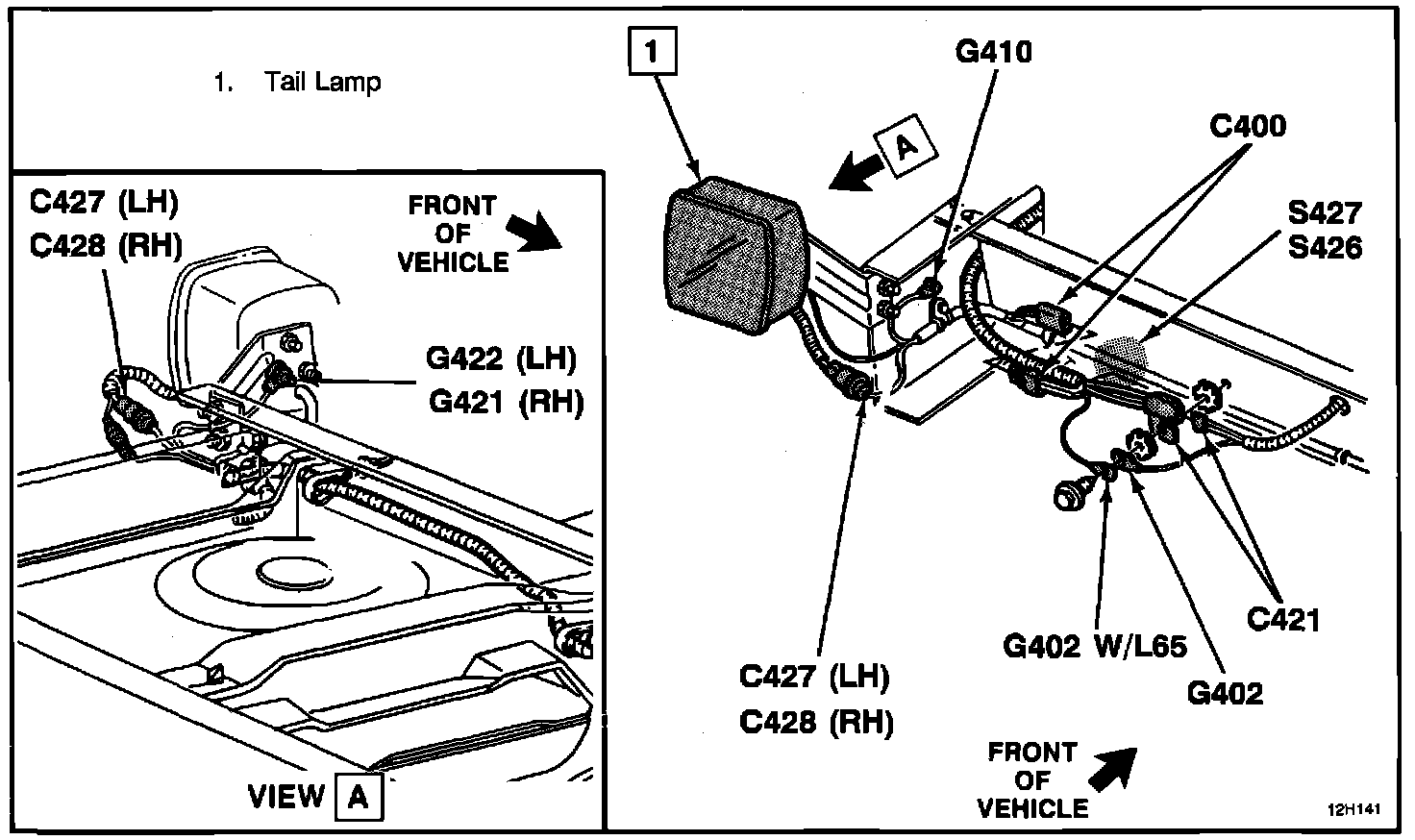

Rear And Lamp Wiring - Chassis Cab:
