Compressor Diagnosis

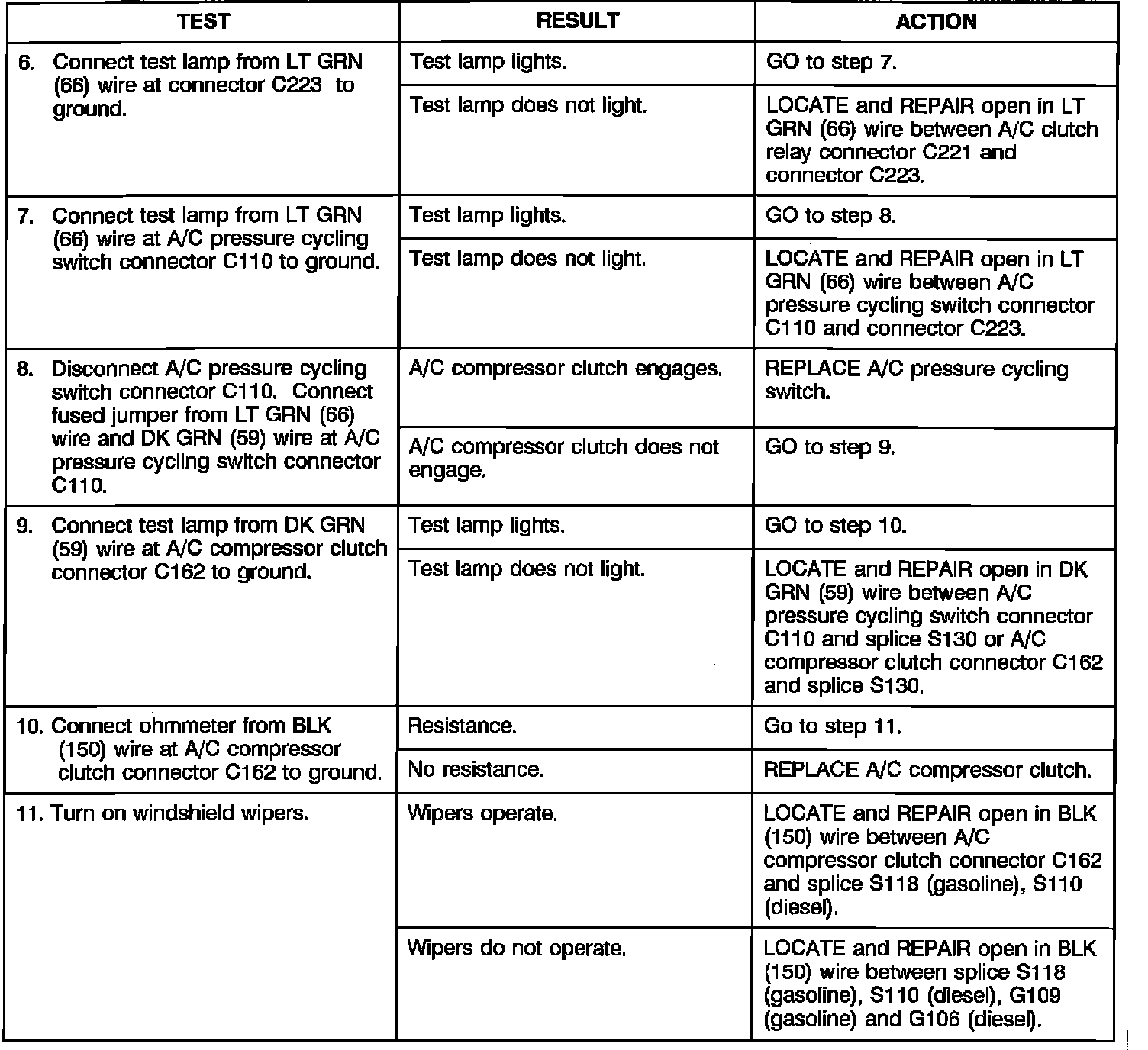

A/C Compressor Clutch Does Not Engage:



A/C Compressor Clutch Does Not Engage:
