Home >> Chevy Truck >> 1993 >> Suburban 1/2 Ton 2WD V8-350 5.7L >> Repair and Diagnosis >> Heating and Air Conditioning >> Air Door >> Testing and Inspection >> Front >> Temperature Door Motor Does Not Operate

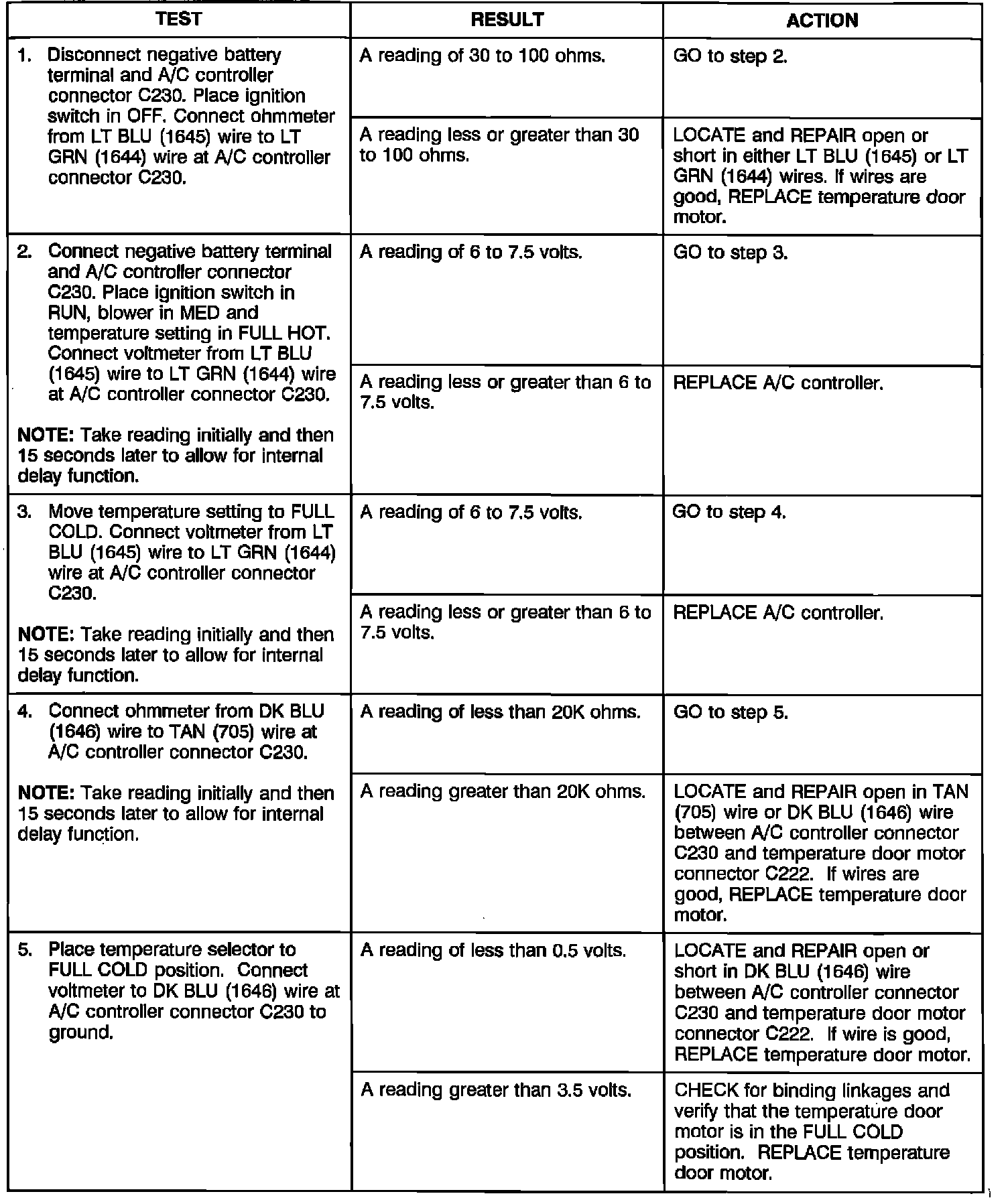

Temperature Door Motor Does Not Operate

Temperature Door Motor Does Not Operate:
