Home >> Chevy Truck >> 1993 >> Suburban 1/2 Ton 2WD V8-350 5.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> System Diagram >> Power Distribution Diagrams >> Part 1 of 2

Part 1 of 2

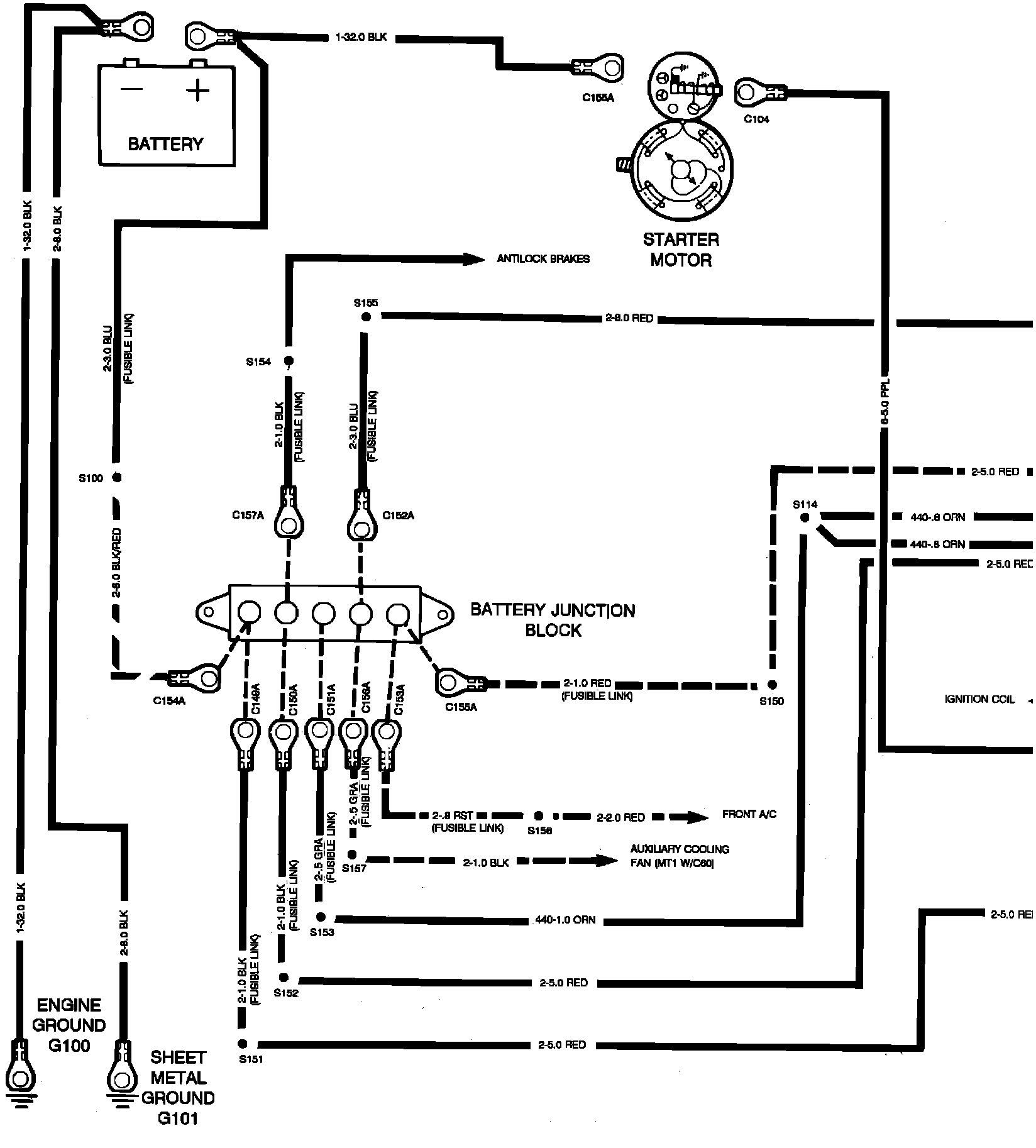

�Μ2Power Distribution - Gasoline Engines:
