FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
1993
>>
Suburban 1/2 Ton 2WD V8-350 5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>

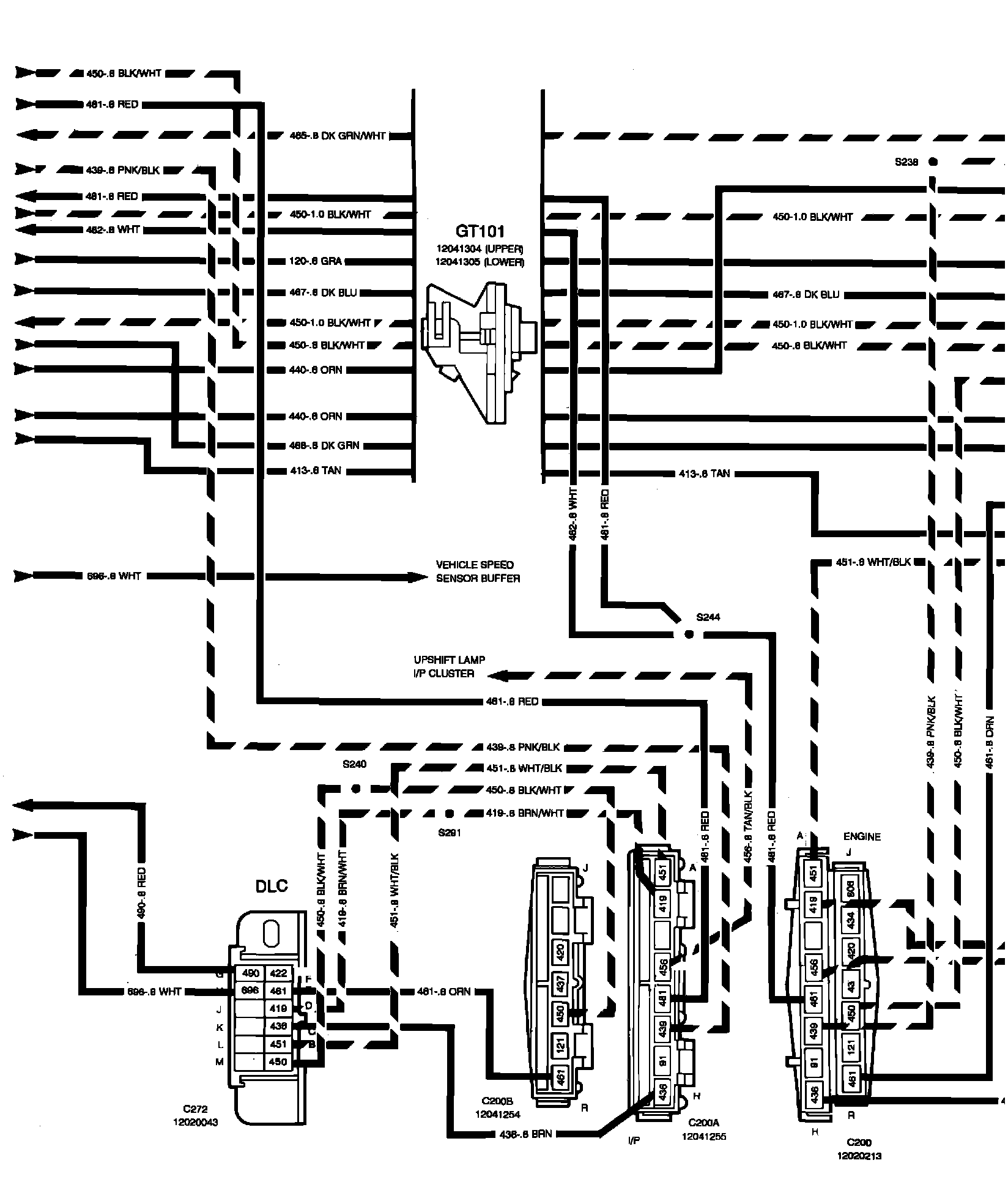

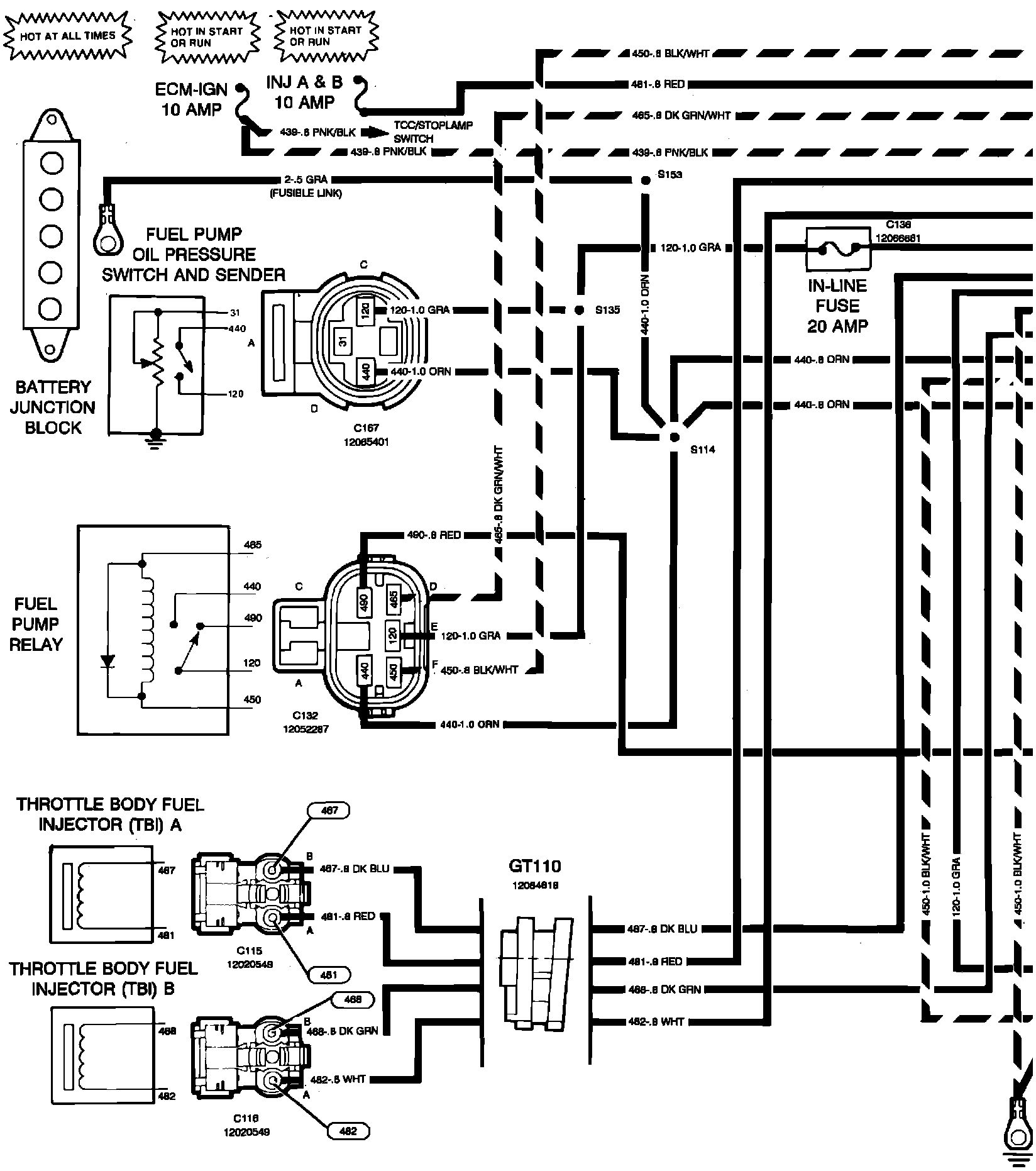

Fuel Pump Control
>>
With Manual Transmission (RPO MG5, MT8)
With Manual Transmission (RPO MG5, MT8)
��%Fuel Controls - Gasoline Engines W/Manual Transmission:
�A%Fuel Controls - Gasoline Engines W/Manual Transmission:
