Home >> Chevy Truck >> 1993 >> Suburban 1/2 Ton 2WD V8-350 5.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> With 4L60-E Transmission >> Pinout Description

Pinout Description

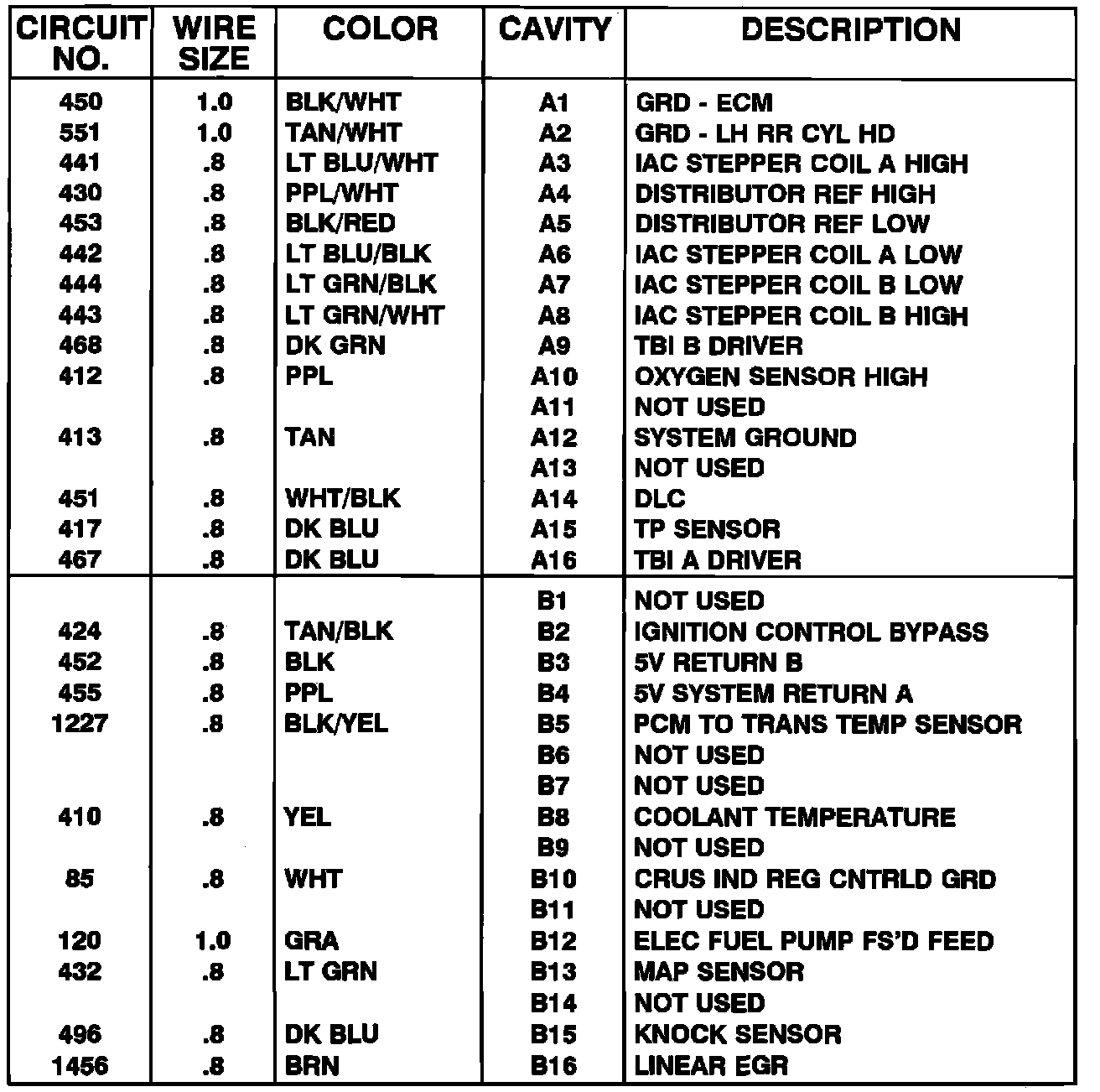

Powertrain Control Module Pinouts - Gasoline Engines W/4-SPD Automatic Overdrive Transmission:

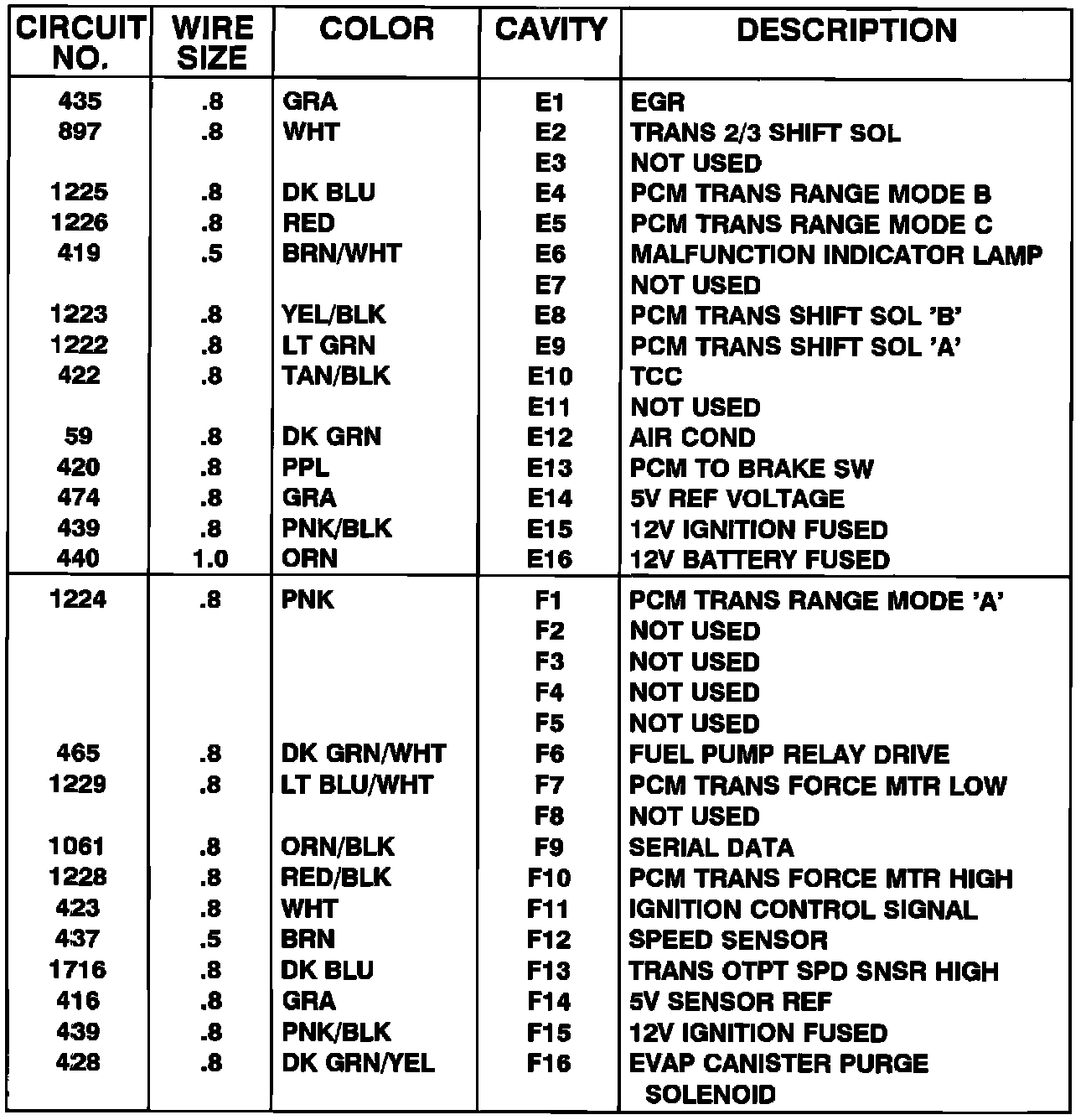

Powertrain Control Module Pinouts - Gasoline Engines W/4-SPD Automatic Overdrive Transmission:
