Home >> Chevy Truck >> 1993 >> Suburban 1/2 Ton 2WD V8-350 5.7L >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Power Door Lock Actuator >> Diagrams >> Electrical Diagrams

Electrical Diagrams

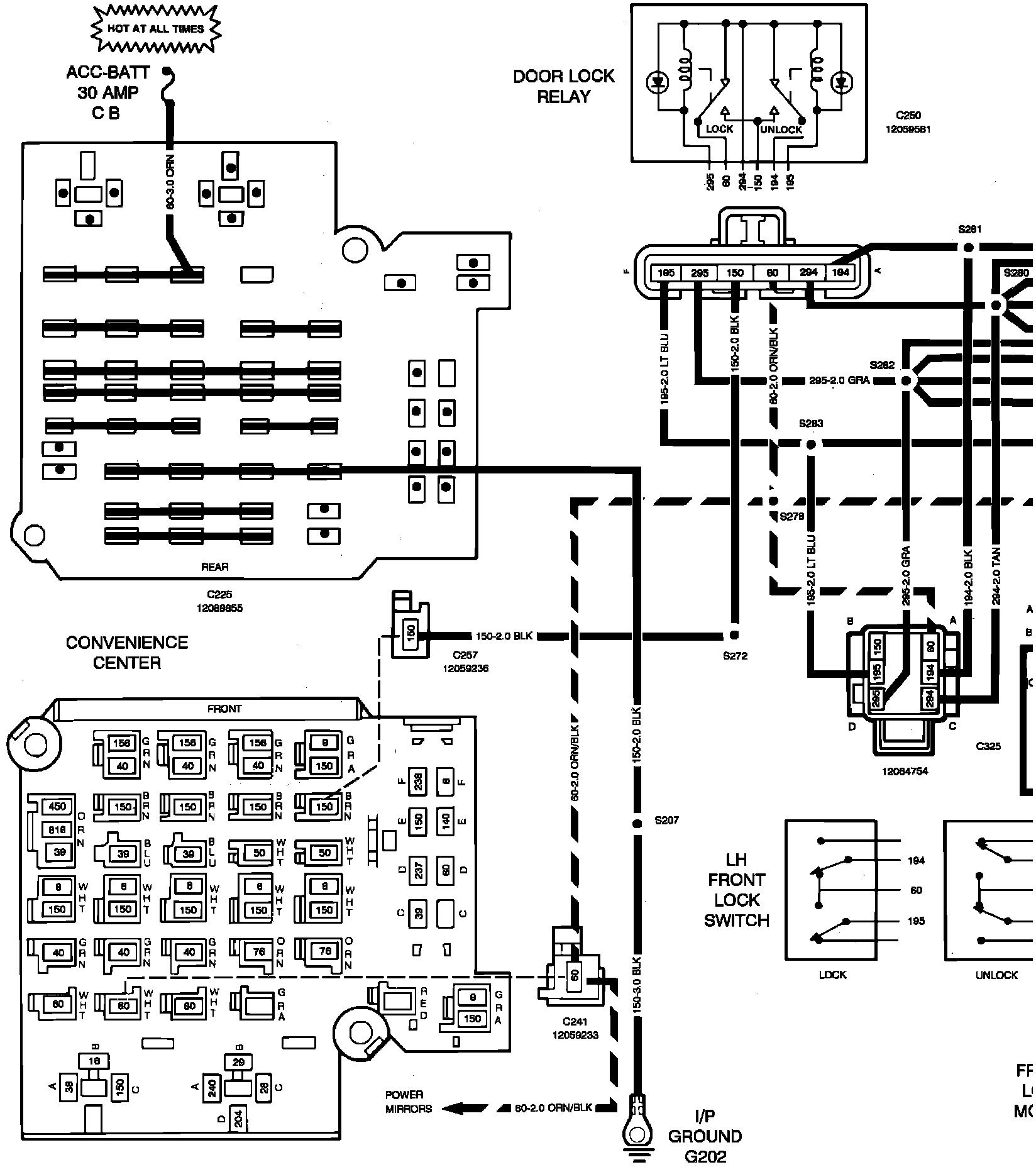

��%>Power Door Locks - Crew Cab, Suburban:



&>Power Door Locks - Crew Cab, Suburban:
