DTC 10
>>
Brake Light Switch - Rear Wheel Anti-Lock Brake System
Brake Light Switch - Rear Wheel Anti-Lock Brake System

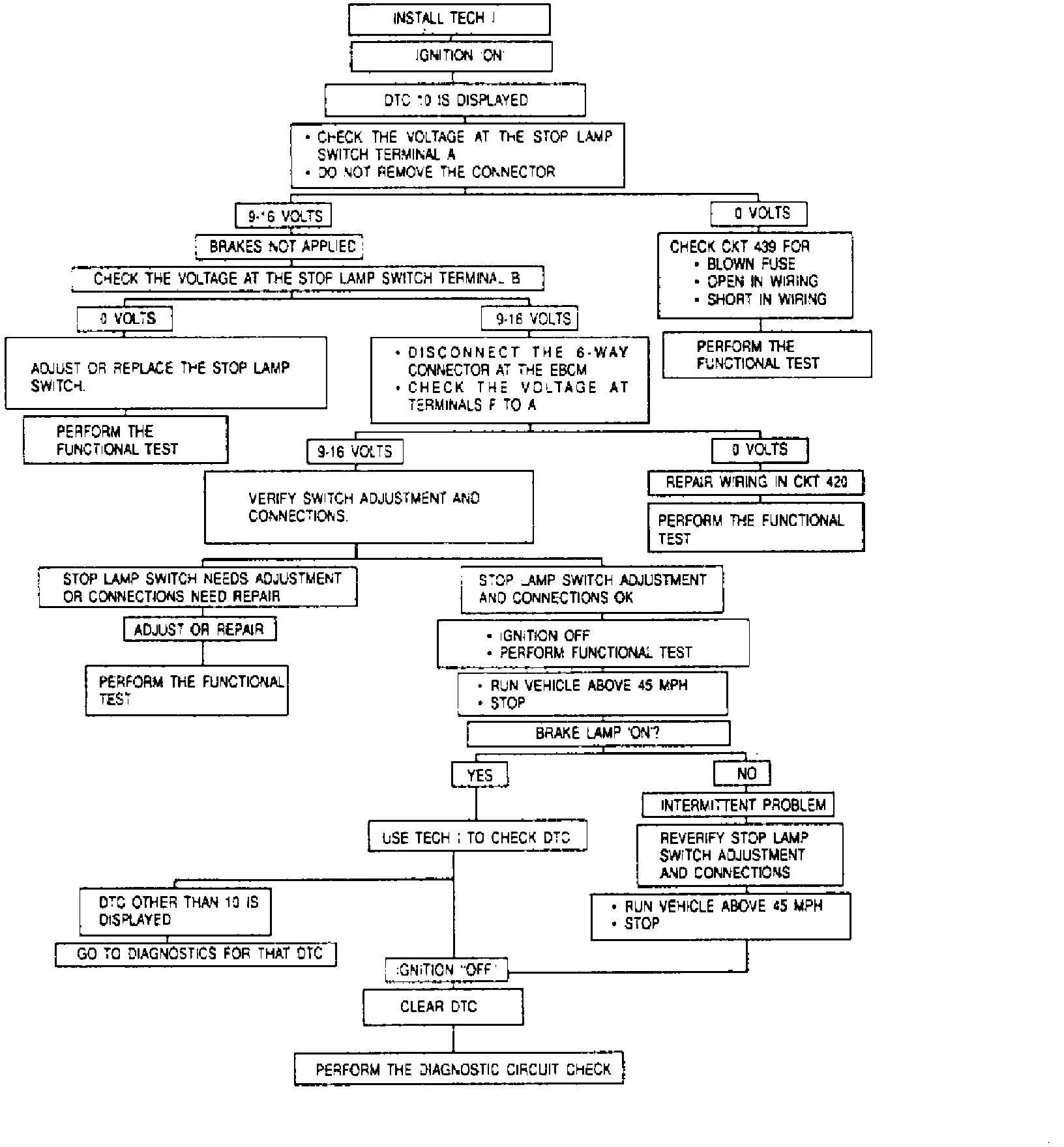

Fig. 77 DTC Code 10 Diagnosis (Stop Lamp Switch Circuit). 1993 C/K:
