Multi-Function Switch
Multi-Function Switch
Engine Wiring, Left Hand Side Of Engine - Diesel Engine:

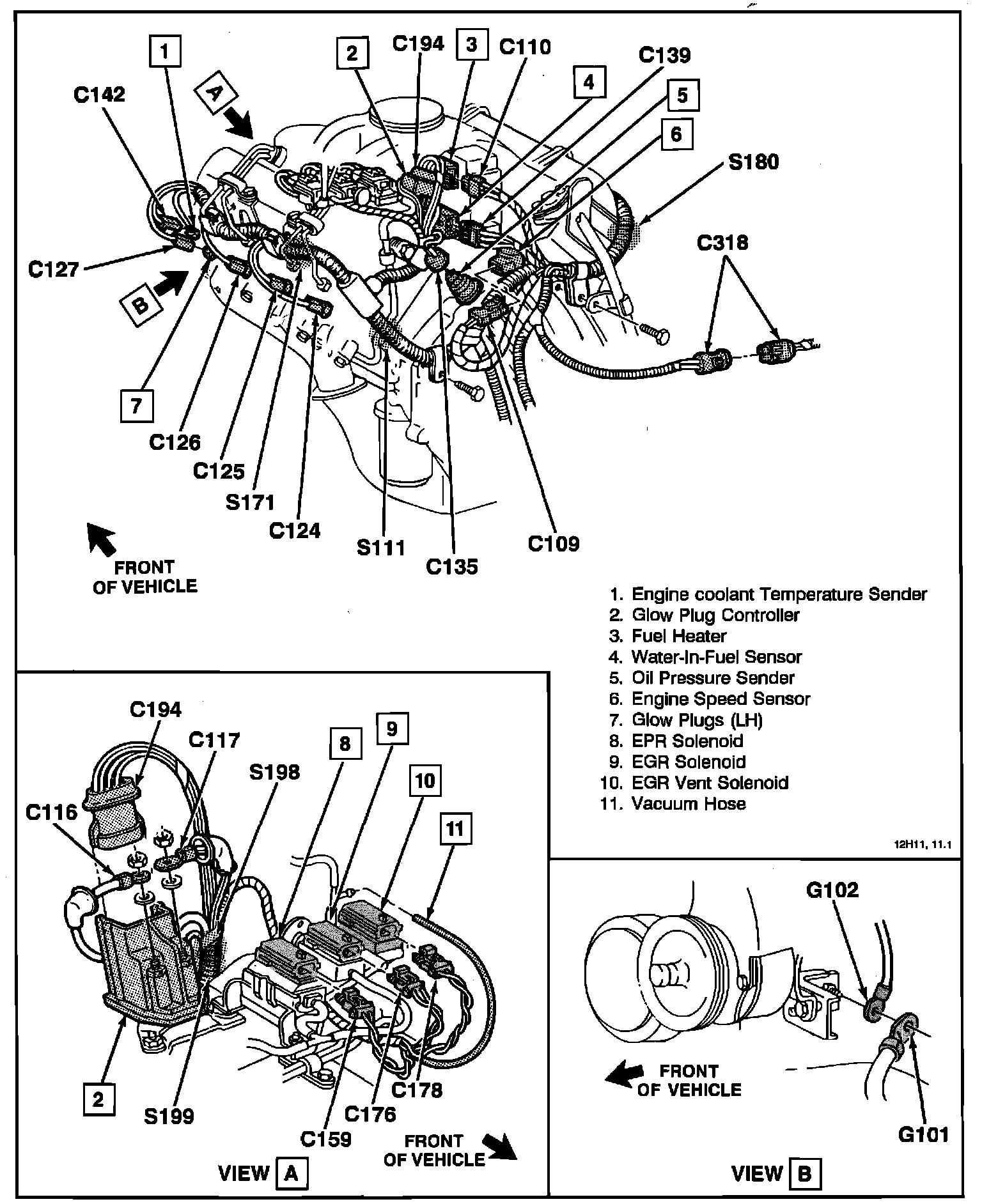

Engine Wiring, Left Hand Side Of Engine - Diesel Engine:
