Home >> Chevy Truck >> 1990 >> Suburban 1/2 Ton 2WD V8-350 5.7L >> Repair and Diagnosis >> Transmission and Drivetrain >> Technical Service Bulletins >> All Technical Service Bulletins >> A/T - Diagnosing Converter Lock-Up Problems >> Test # 12 - Checking Signal Oil Circuit

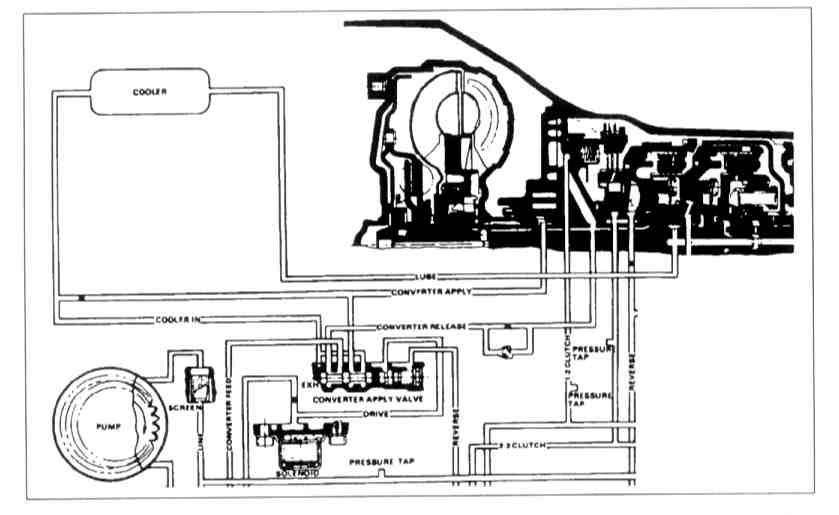

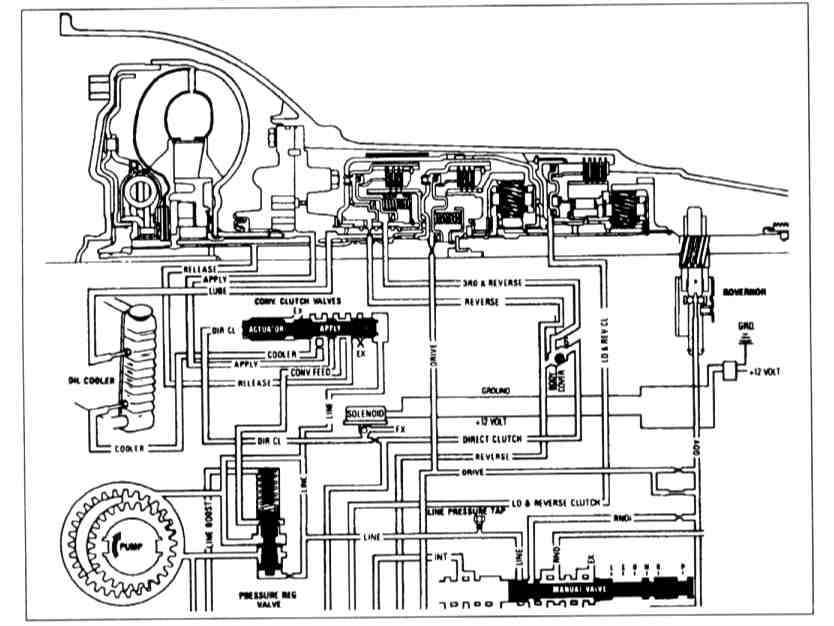

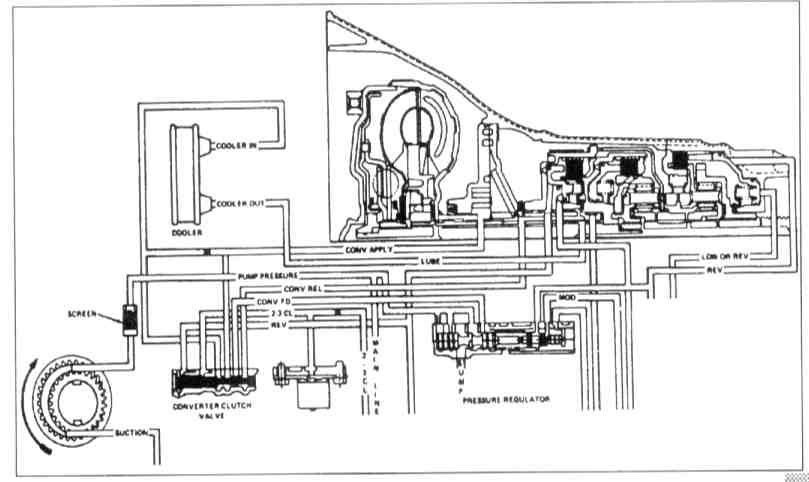

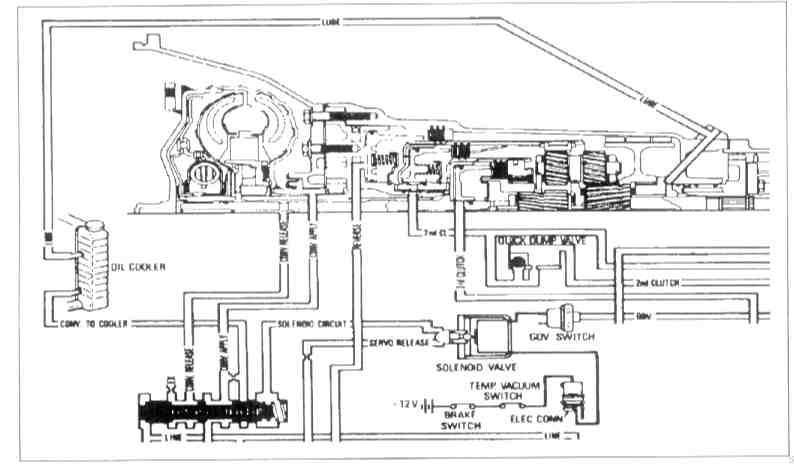

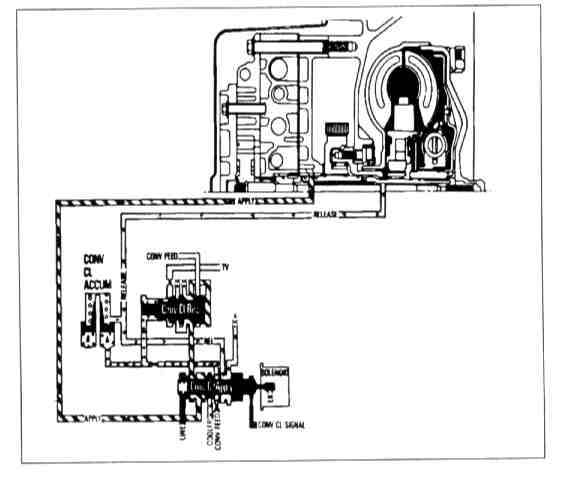

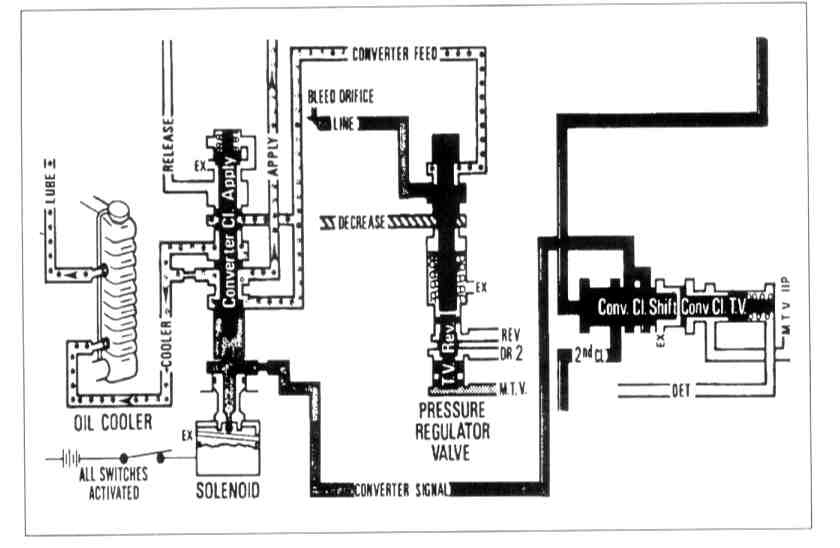

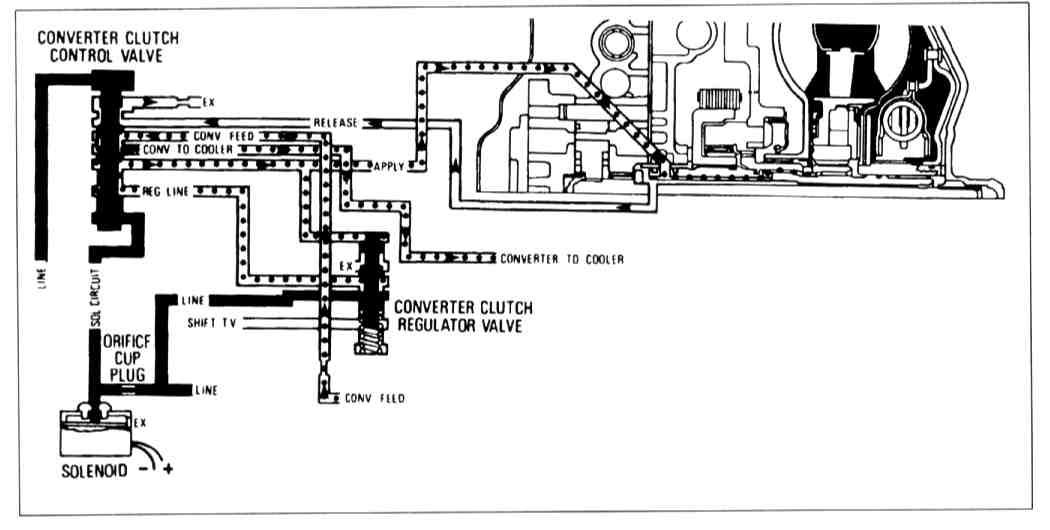

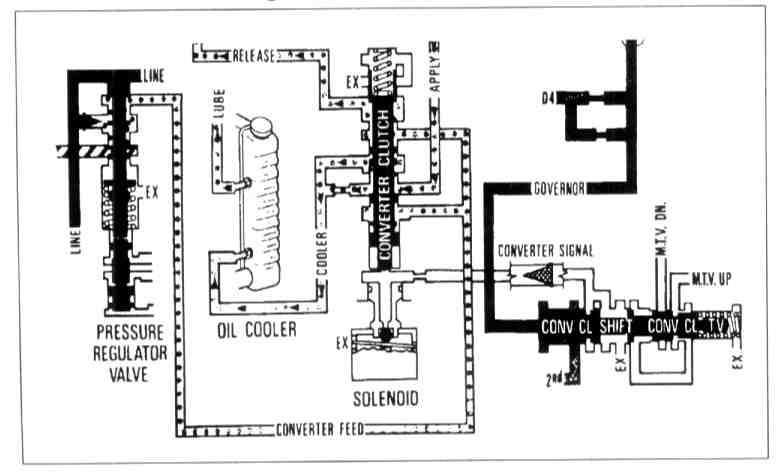

Test # 12 - Checking Signal Oil Circuit

TEST # 12


























CHECK SIGNAL OIL CIRCUIT
